11 - 11 11 - 11

MELSOFT

11. USEFUL FUNCTIONS

11.2 Edit Functions for Data Setting

This section explains the edit functions which can be used for positioning data or block

start data setting.

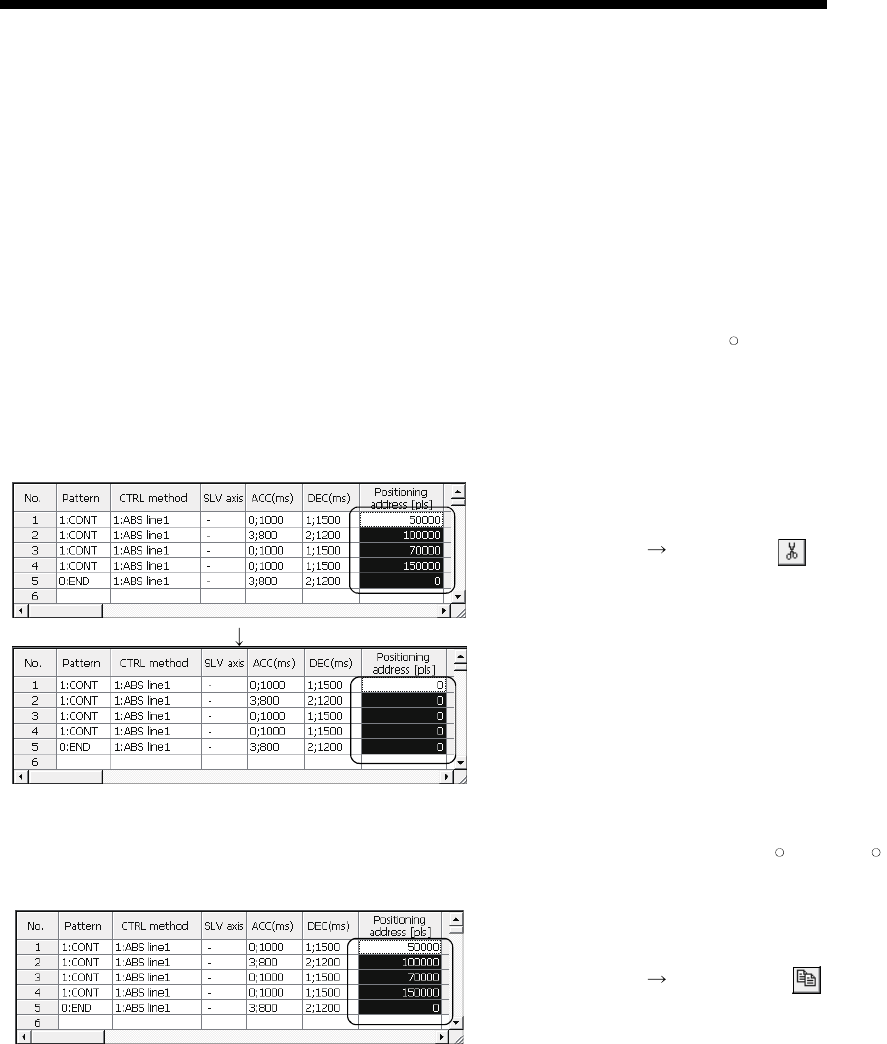

11.2.1 Cut/copy/paste

These functions cut/copy and paste some part of the positioning or block start data

settings.

Also these functions cut/copy the values entered in Microsoft

Excel or Word table

and pastes them to the positioning data or block start data of GX Configurator-QP.

(1) Cut

Used to cut the selected range.

1) Choose the area to be cut.

2) Click the [Edit]

[Cut] menu ( ).

Alternatively, click [Cut] in the right-click menu.

3) The values in the selected range change to initial

values.

(2) Copy

Used to copy the selected range to the clipboard of Microsoft

Windows

Operating System.

1) Choose the area to be copied.

2) Click the [Edit]

[Copy] menu ( ).

Alternatively, click [Copy] in the right-click menu.
