1. OVERVIEW

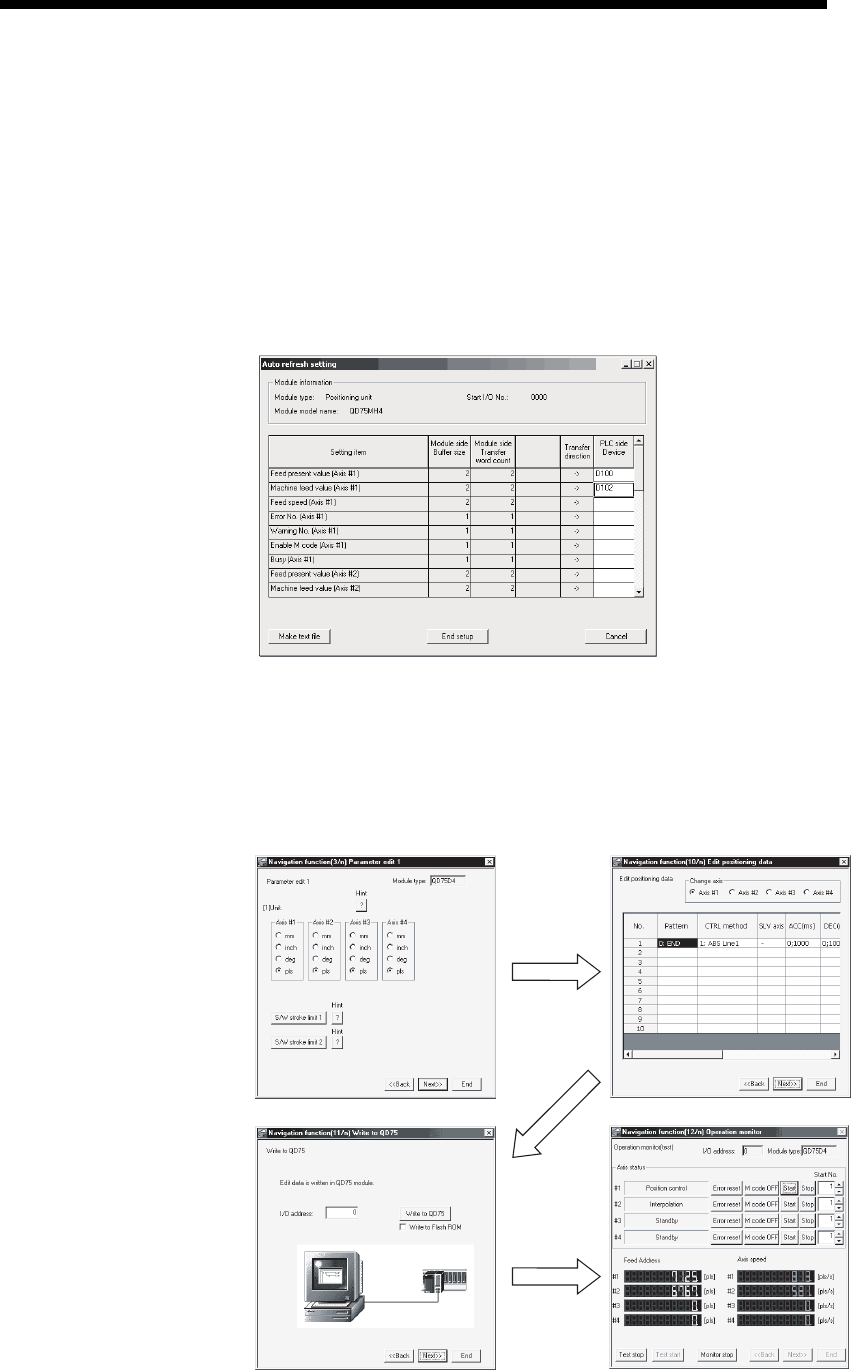

(3) Simplified program by auto refresh setting

Auto refresh setting is made to automatically read the following values stored in

QD75/LD75/LD77 buffer memory to the QCPU/LCPU devices.

• Feed present value

• Machine feed value

• Feed speed

• Error No.

• Warning No.

• Enable M code

Auto refresh setting reduces the number of FROM instructions used to read the

buffer memory storage values, facilitating creation and debugging of programs.

(4) Ease of operation with navigation function (only for QD75P/QD75D)

GX Configurator-QP has a navigation function which can perform operations

from data setting, write to the QD75P/QD75D, monitoring, test to data storage in

a sequential order.

As basic settings and debugging can be performed in orderly sequence, you can

understand operations necessary for this software and positioning control.

Parameter setting

Positioning data setting

Write to QD75P/QD75D

Debugging by test operation
