MELSOFT

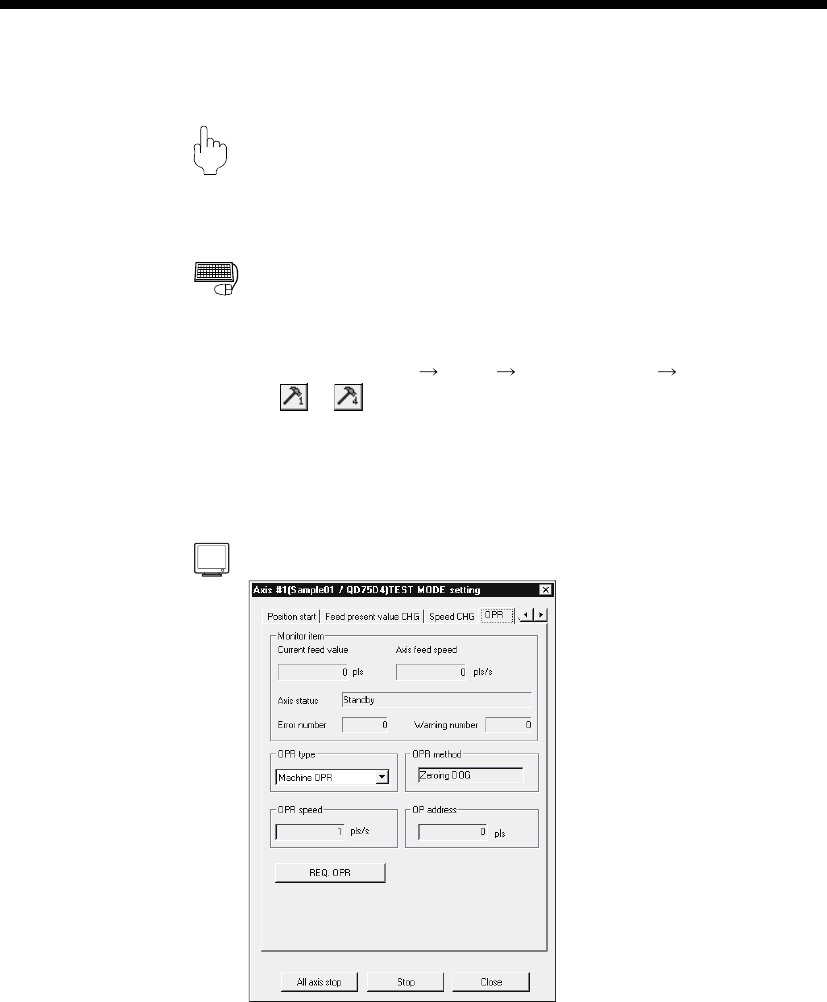

10. POSITIONING DEBUGGING

10.4.4 OPR test

PURPOS

Perform an OPR test to set up an original point and correct the preset OPR basic

parameters and OPR extended parameters.

BASIC OPERATIO

1. Place the QD75/LD75/LD77 in the test mode in accordance with Section 10.4

(1).

2. Click the [Online]

[Test] [Operation test] [Operation test #1 to #4] menu

(

3. Click the <<OPR>> tab in the TEST MODE setting dialog box.

4. Check the OPR method, OPR speed and Original point address.

5. Choose the OPR type and click the "REQ. OPR" button.

6. To exit, click the "Close" button.

DISPLAY/SETTING SCREE
