10 - 36 10 - 36

MELSOFT

10. POSITIONING DEBUGGING

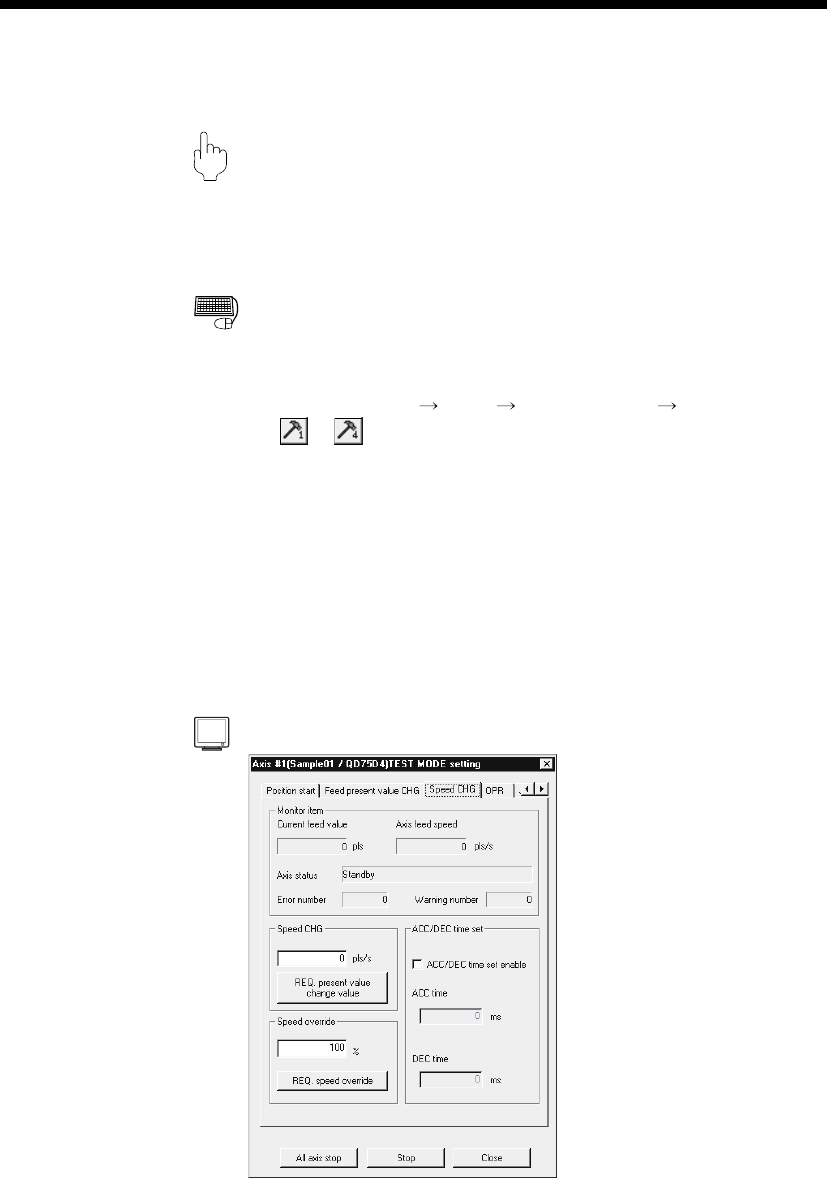

10.4.3 Speed change test

PURPOS

Make a speed and/or acceleration/deceleration time change to the axis operating

in the positioning start, OPR or JOG operation test to check the adequate speed

and/or acceleration/deceleration time.

BASIC OPERATIO

1. Place the QD75/LD75/LD77 in the test mode in accordance with Section 10.4

(1).

2. Click the [Online]

[Test] [Operation test] [Operation test #1 to #4] menu

(

3. Perform positioning start test (refer to Section 10.4.1), OPR test (refer to

Section 10.4.4) or JOG/MPG operation test (refer to Section 10.4.5) in the

TEST MODE setting dialog box.

4. Click the <<Speed CHG>> tab in the TEST MODE setting dialog box.

5. When changing the acceleration/deceleration time, click the unchecked

"ACC/DEC time set enable" check box and set the acceleration/deceleration

time.

6. Make a speed change test on the running axis.

7. To exit, click the "Close" button.

DISPLAY/SETTING SCREE
