10. POSITIONING DEBUGGING

10.3.2 Sampling buffer monitor

PURPOS

You can monitor the buffer memory storage values of the specified

QD75/LD75/LD77 as waveform data.

BASIC OPERATIO

1. Choose Sampling monitor (Buffer).

Double-click. Double-click.

2. Click the "Setup" button in the Sampling monitor (Buffer) window.

3. Set the buffer memory addresses, upper limit value and lower limit value in the

Sampling Buffer area data setting dialog box.

4. Click the [Online]

[Monitor] [Monitor On/Off] menu ( ).

5. Check the monitor results.

6. To exit, click the [Online]

[Monitor] [Monitor On/Off] menu ( ).

DISPLAY/SETTING SCREE

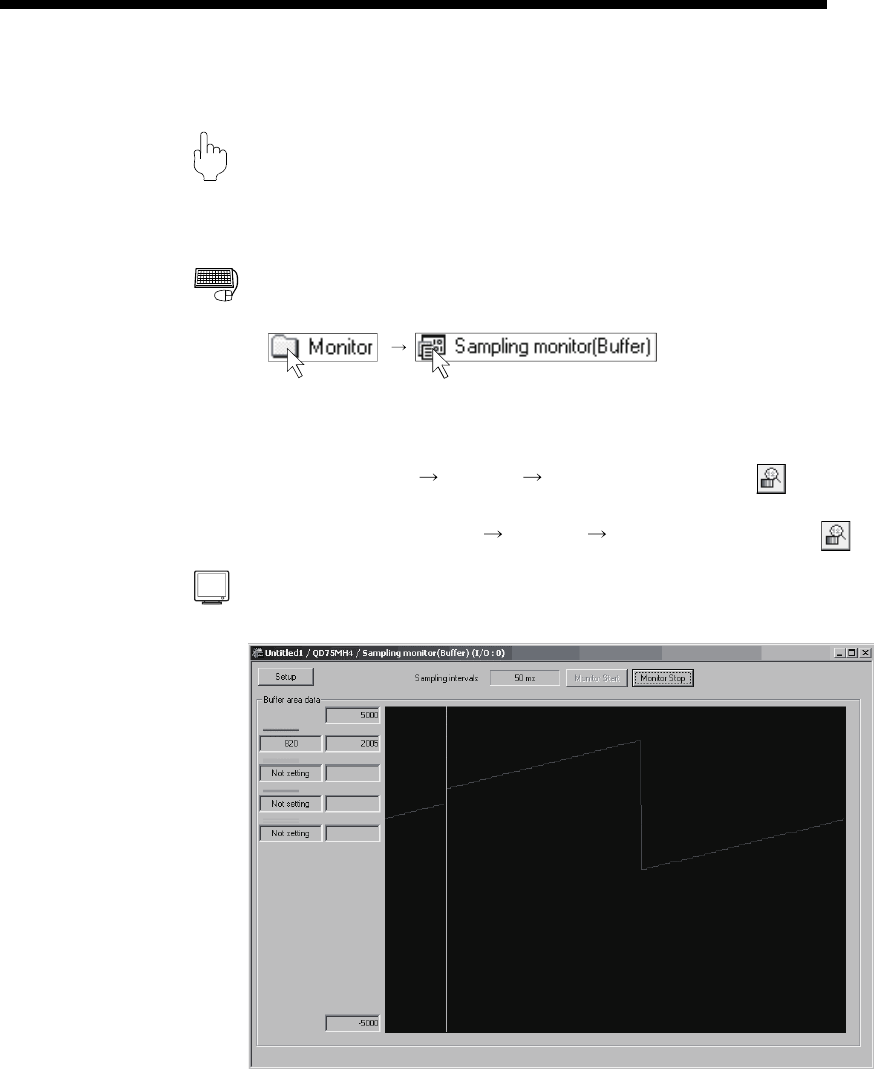

[Sampling monitor (Buffer)]
