10 - 7 10 - 7

MELSOFT

10. POSITIONING DEBUGGING

10.2.3 History monitor

PURPOS

Monitor the error, warning and start histories stored in the QD75/LD75/LD77

buffer memory during operation monitor.

BASIC OPERATIO

1. Perform the basic operation in Section 10.2.2 to display the operation monitor

window.

2. Click the "History" button on the operation monitor window.

3. Click the <<Error history>>/<<Warning history>>/<<Start history>> tab.

DISPLAY/SETTING SCREE

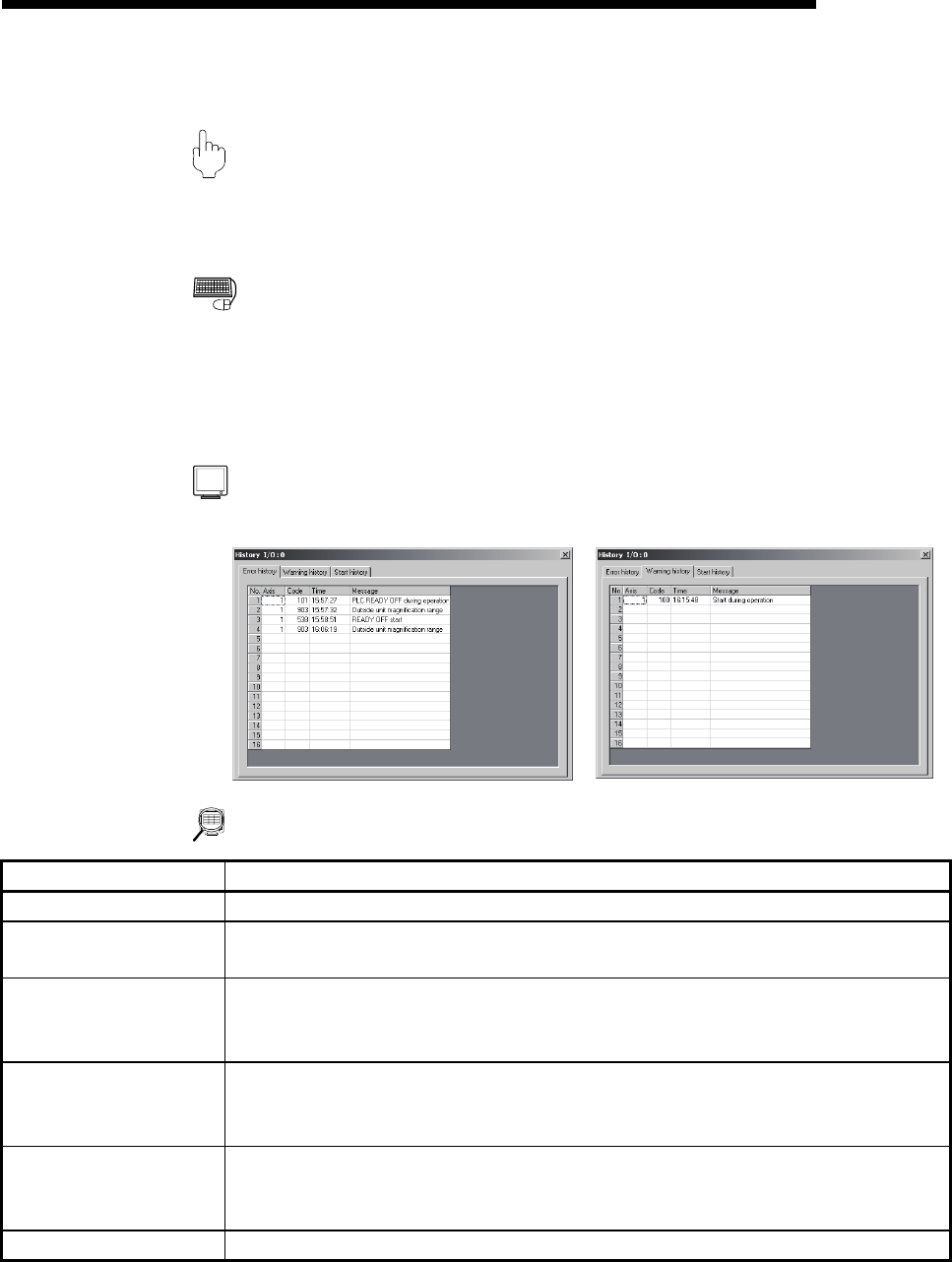

[Error history monitor] [Warning history monitor]

DISPLAY/SETTING DATA

Item Description

Title bar Shows the I/O address of the QD75/LD75/LD77 being monitored.

Represents the order of errors/warnings which occurred since power-on.

If more than 16 errors/warnings occurred, the older ones are deleted.

Axis

Shows the axis where the error/warning occurred.

Buffer memory address (newest error): 1293

Buffer memory address (newest warning): 1358

Code

Shows the error/warning code.

Buffer memory address (newest error): 1294

Buffer memory address (newest warning): 1359

Time

Shows the error/warning occurrence time in hour:minute:second format.

Buffer memory address (newest error): 1295, 1296

Buffer memory address (newest warning): 1360, 1361

Message Shows the error/warning name.
