10 - 4 10 - 4

MELSOFT

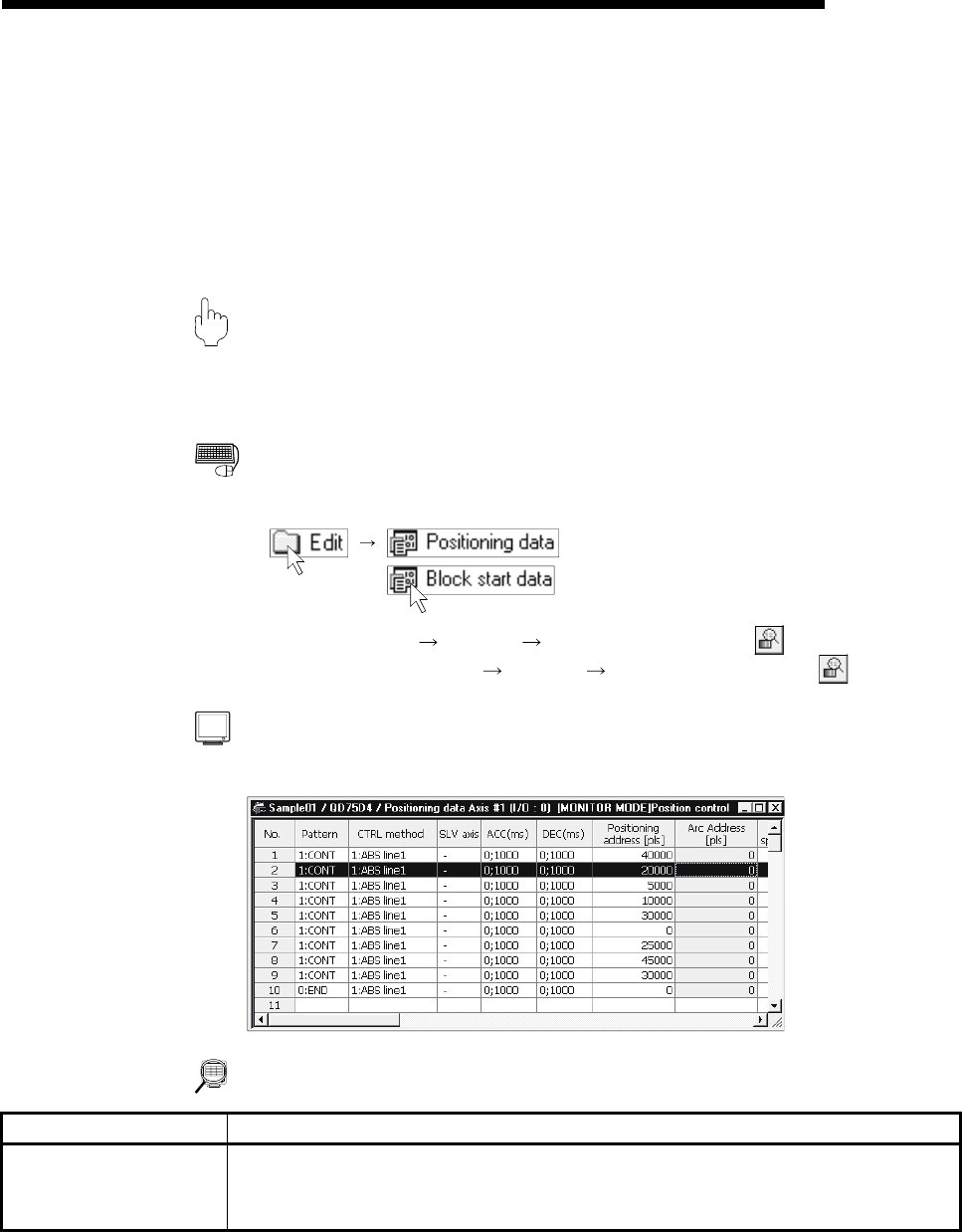

10. POSITIONING DEBUGGING

10.2 Monitor

Monitor the positioning data and block start data execution states on an axis by axis

basis, or perform detailed monitor of the error histories, signal states, present values,

speeds, etc. on a project basis.

10.2.1 Monitoring the positioning data/block start data

PURPOS

From the positioning data/block start data edit window of any axis, monitor the

positioning data No.s or block No.s and point No.s being executed.

BASIC OPERATIO

1. Choose the positioning or block start data edit window.

Double-click.

2. Click the [Online]

[Monitor]

[Monitor On/Off] menu (

3. To exit, click the [Online]

[Monitor]

[Monitor On/Off] menu ( ).

DISPLAY/SETTING SCREE

[For positioning data monitor]

DISPLAY/SETTING DATA

Item Description

Positioning data

monitor/block start data

monitor

For positioning data monitor, the positioning data in execution is highlighted.

For block start data monitor, the point in execution is highlighted.
