8. DATA SETTING

8.6 Error Check

PURPOS

Execute an error check to check the set parameters, servo parameters, positioning

data and block start data for mismatches and setting omissions.

For error check range, refer to the user’s manual for the positioning module used.

BASIC OPERATIO

1. Set the error-checked project as the active project on the project tree view.

(Refer to Section 5.2.)

2. Click the [Tool]

[Error check] menu.

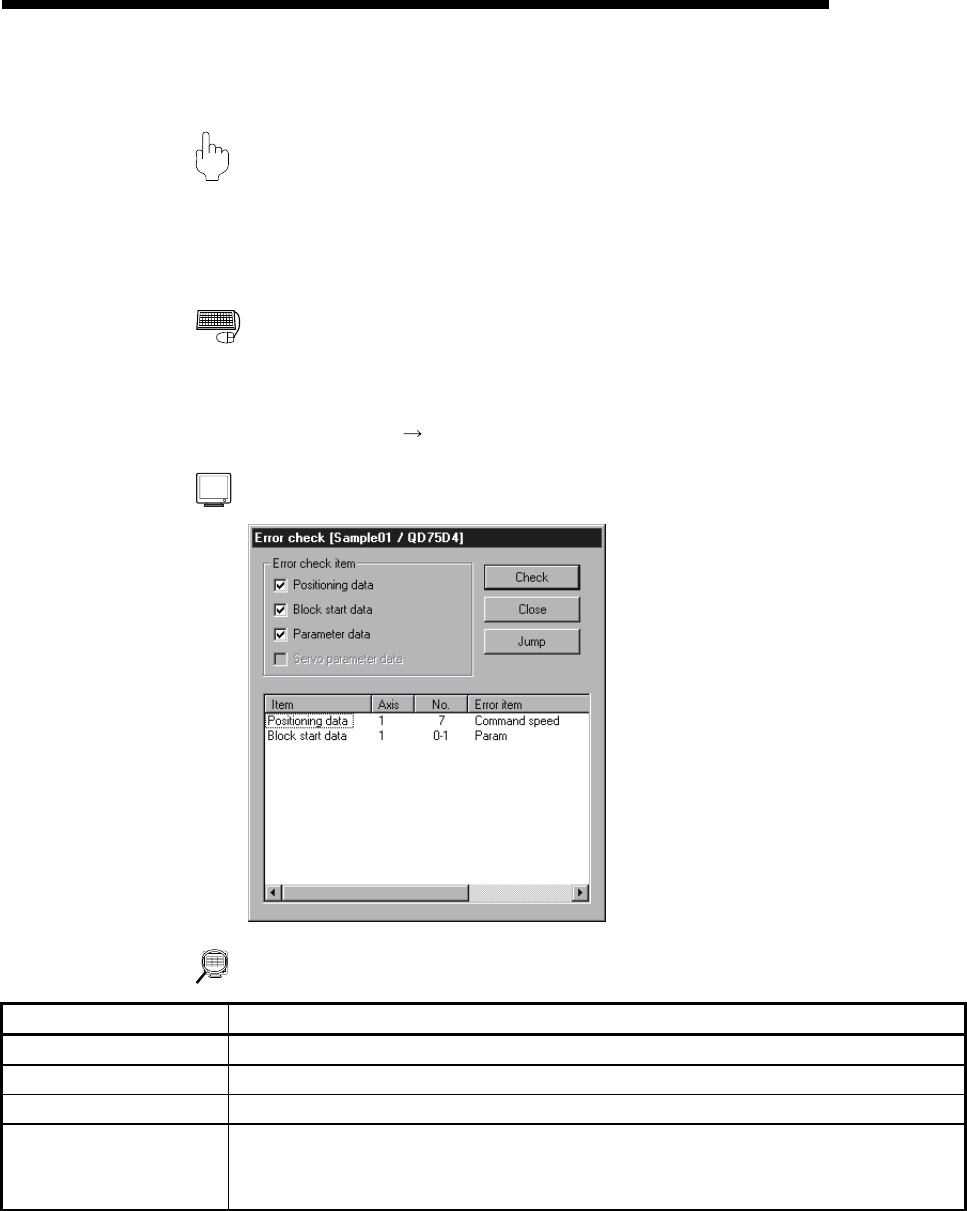

DISPLAY/SETTING SCREE

DISPLAY/SETTING DATA

Item Description

Error check item In the check box, set the data on which error check will be made.

"Check" button Click this button to start error check.

"Jump" button Click this button to show the error locations.

Error check result

When error check is completed, the number of errors and error locations appear.

On the above screen, error locations are the command speed of axis #1 positioning data No.

7 and the parameter at point No. 1 of axis #1 block No. 0.
