8 - 14 8 - 14

MELSOFT

8. DATA SETTING

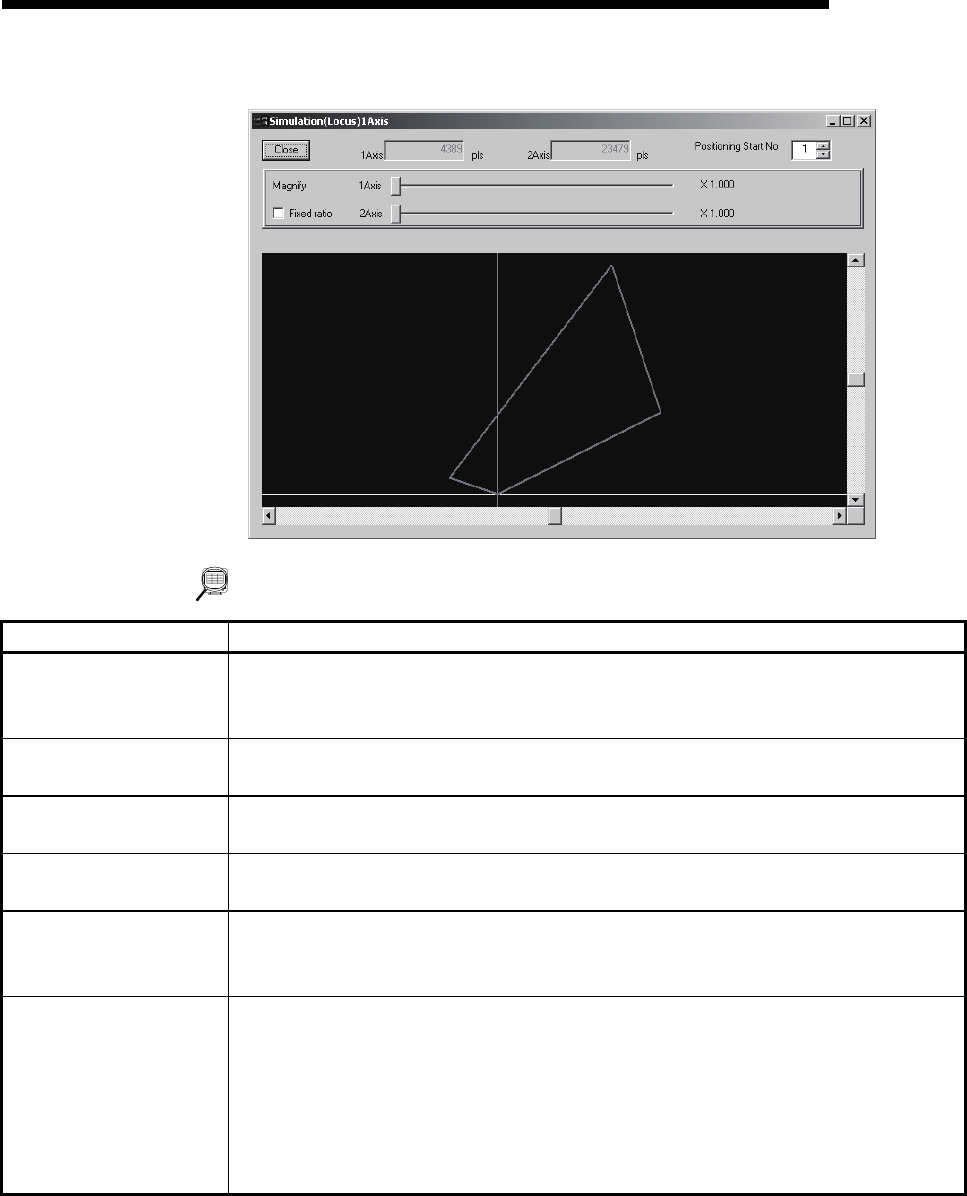

[Locus data for 2-axis interpolation control]

DISPLAY/SETTING DATA

Item Description

Positioning start No

Set the first positioning data No. from which simulation starts.

Simulation is performed on the data from the specified No. to the "END" of the operation

pattern.

Magnify

Used to enlarge or reduce the simulation result in the vertical and horizontal directions.

Moving the side to the right enlarges the result.

"Fixed ratio" check box

Click the unchecked check box to enlarge/reduce the result in the vertical and horizontal

directions by the same ratio.

Time/Speed

(Wave data)

Shows the time and axis speed at the position clicked in the simulation result display.

#1 to #4 axis (Locus data)

Shows the coordinates at the position clicked in the simulation result display.

In the screen example, the coordinates shown are those of Axis #1 used as the reference

axis and Axis #2 used as the interpolation axis.

Simulation result

Shows the simulation result.

Changing the positioning data also changes the simulation result in synchronization.

For 2-axis interpolation control, the reference axis is in the horizontal direction and the

interpolation axis is in the vertical direction.

For 1-axis control, time is in the horizontal direction and the axis speed is in the vertical

direction.

Use the scroll bars to move the display area.
