8. DATA SETTING

8.3.2 M code comment

PURPOS

Set comments to M codes which are required for control exercised in

synchronization with positioning control.

M code comments are data which can be saved only in the personal computer.

Up to 50 comments can be set for each axis.

BASIC OPERATIO

1. Choose the positioning data of the axis to which the M code comments will be

set.

Double-click.Double-click.

2. Click the [Edit]

[M code comment] menu.

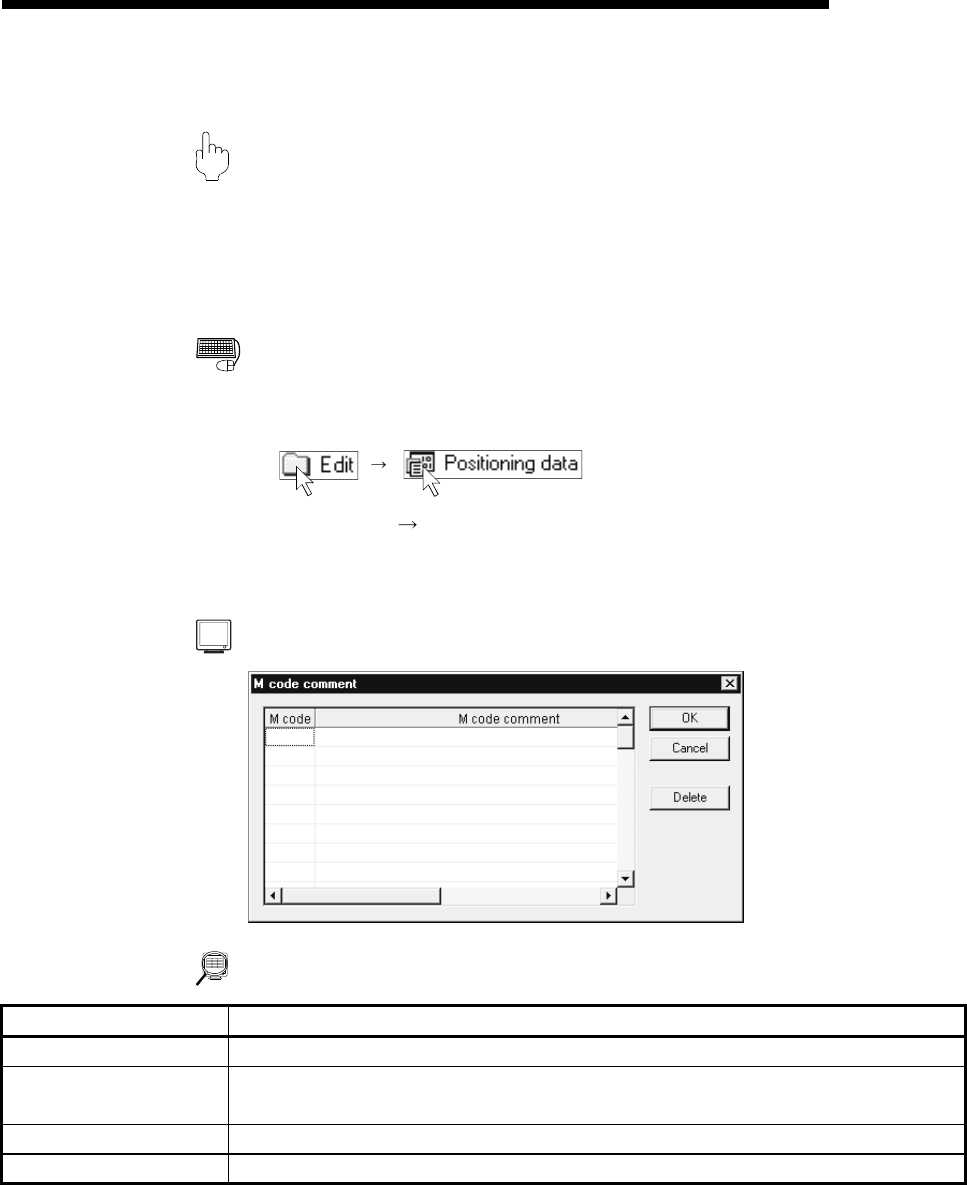

3. Set the M code comments.

4. To exit, click the "OK" button in the M code comment dialog box.

DISPLAY/SETTING SCREE

DISPLAY/SETTING DATA

Item Description

M code Set the M code No. to be commented.

M code comment

Set a comment of up to 32 characters.

Up to 50 comments can be set for each axis.

"OK" button Click this button to finish the setting.

"Delete" button Click this button to delete the selected comment.
