MELSOFT

8. DATA SETTING

8.2 Servo Parameter Setting

PURPOS

Set the servo parameters to be transferred from the QD75M, QD75MH and LD77

to the servo amplifiers via the SSCNET (Servo System Controller NETwork) or

SSCNET

For servo parameters, the following four types are available.

<QD75M>

• Servo basic parameters

• Servo regulation parameters

• Servo extended parameters

• Servo extended parameters 2

• Servo amplifier series

• Basic setting parameters

• Gain/filter parameters

• Extension setting parameters

• I/O setting parameters

• Extended control parameters

• Special setting parameters

For settings, refer to the instruction manuals of the servo amplifiers and servo

motors used.

BASIC OPERATIO

1. Choose Servo Parameter.

Double click

2. Make setting in the parameter edit window.

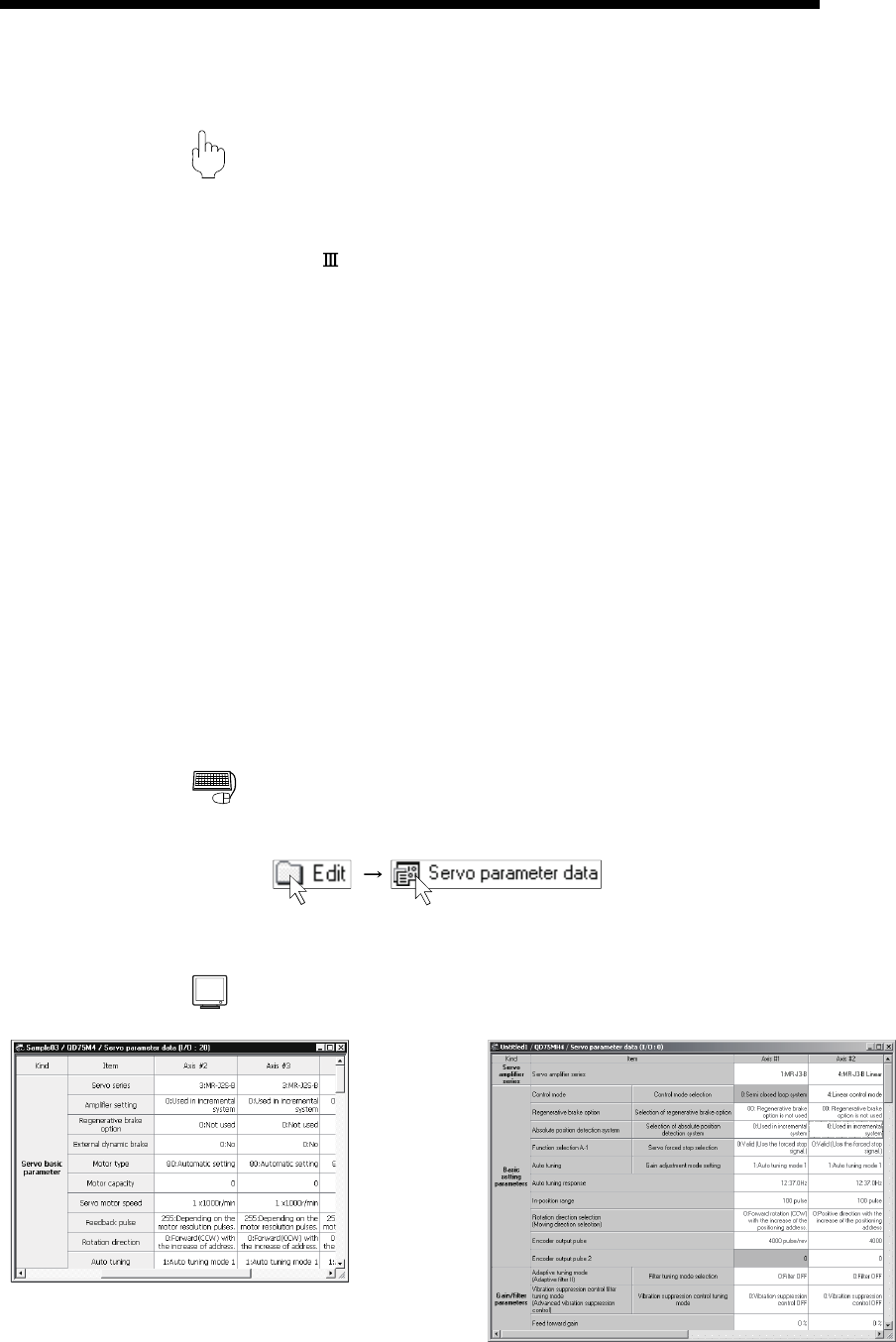

DISPLAY/SETTING SCREE

[Servo parameter setting screen (QD75M)] [Servo parameter setting screen (QD75MH/LD77)]
