8 - 1 8 - 1
MELSOFT
8. DATA SETTING
8. DATA SETTING
Set the parameters, servo parameters, positioning data and block start data to be
written to the QD75/LD75/LD77, and check the setting ranges and matching of the
data using the simulation or error check function.
Write the preset parameters, servo parameters, positioning data and block start data to
the QD75/LD75/LD77 before starting positioning operation.
Refer to Section 9.1 for the operation to write the data to the QD75/LD75/LD77.
8.1 Parameter Setting
Set the parameters necessary to exercise positioning control.
For parameter settings, refer to the user’s manual for the positioning module used.
PURPOS
E
There are the following four parameter types.
• Basic parameters
• Extended parameters
• OPR basic parameters
• OPR extended parameters
The basic and extended parameters are divided into parameters 1 needed for
system start and parameters 2 optimized according to the connected external
devices and control.
BASIC OPERATIO
N
1. Choose Parameter.
Double click
Double click

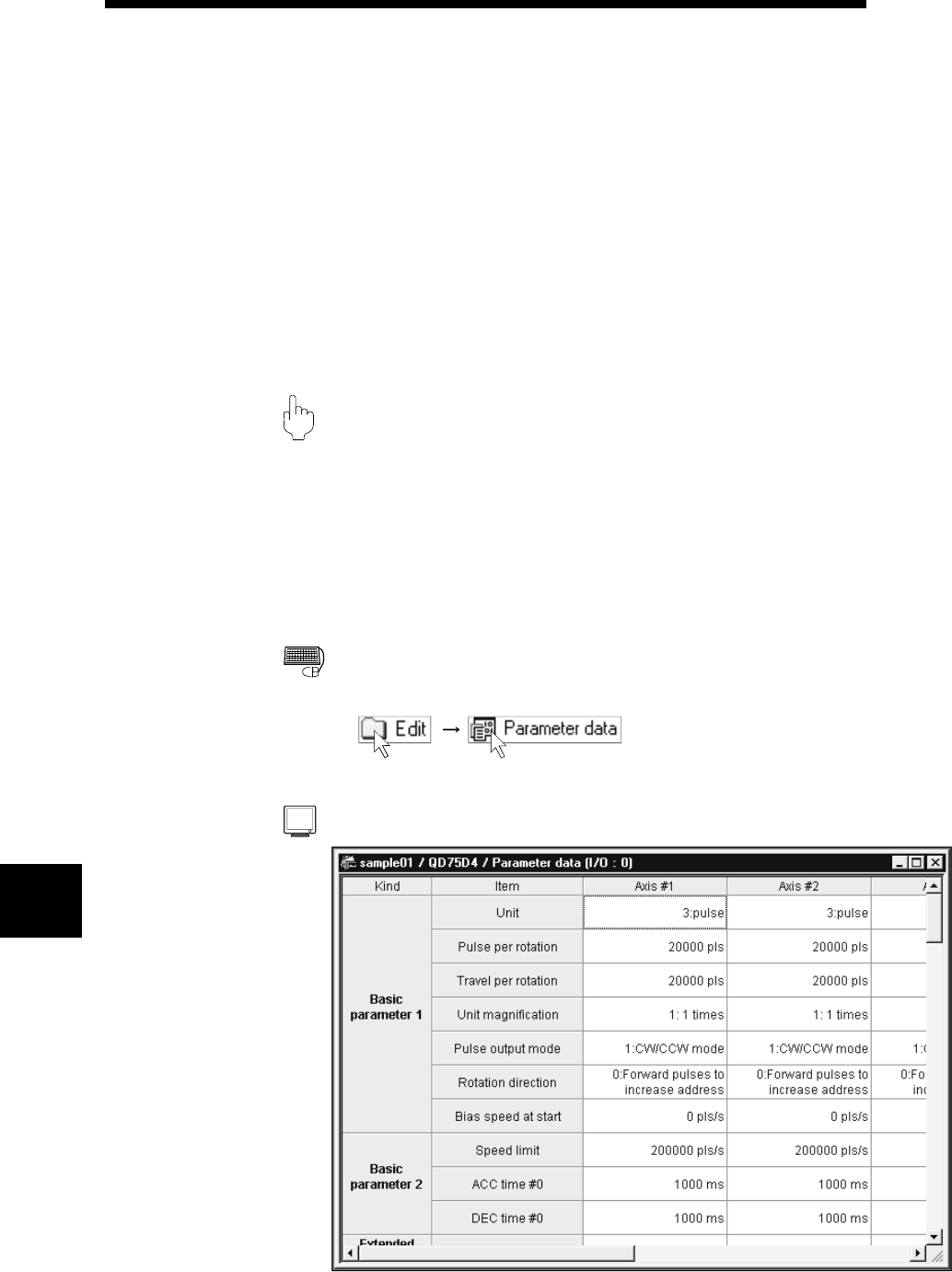

2. Make setting in the parameter edit window.
DISPLAY/SETTING SCREE
N
8
