7 - 8 7 - 8
MELSOFT
7 MANAGEMENT OF DATA IN THE PLC CPU
7.1.4 Writing/reading device comments

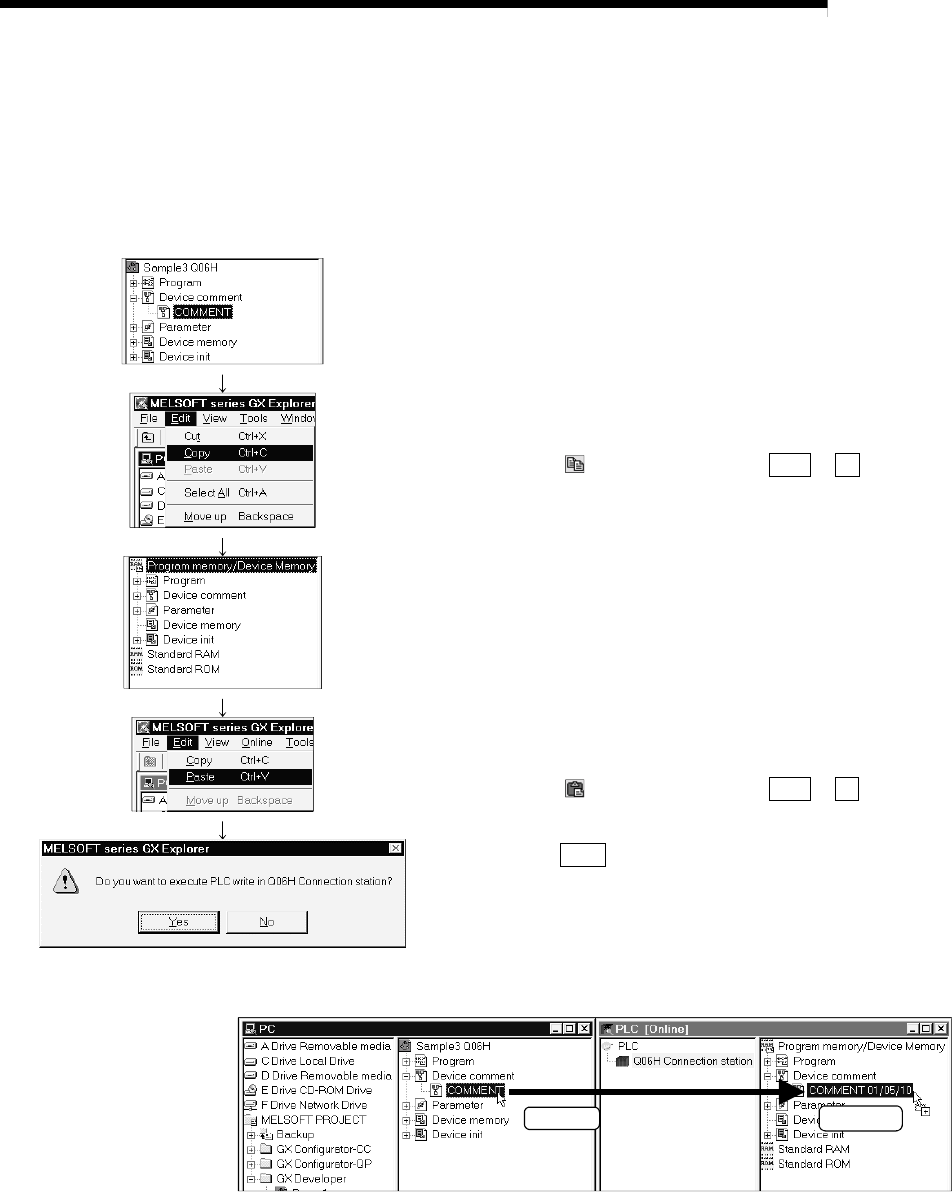

The following examples of write to PLC are used to explain the operations for
writing/reading device comments.
(1) Example of menu-driven operation
1) In the PC side window, choose the device comment
file to be written.
(Choosing "Device comment" indicating the data type
selects all device comments.)
2) Click the [Edit] - [Copy] menu.
(You may also right-click, choose the [Copy] menu,
press the
button, and click the Ctrl + C keys.)
3) Choose the memory in the PLC side window.
4) Click the [Edit] - [Paste] menu.
(You may also right-click, choose the [Paste] menu,
press the
button, and click the Ctrl + V keys.)
5) Click the Yes button in the write to PLC confirmation
dialog box.
(2) Example of drag and drop operation
Drag Drop
