7 - 2 7 - 2
MELSOFT
7 MANAGEMENT OF DATA IN THE PLC CPU
7.1.1 Batch-write/read
The following examples of write to PLC are used to explain the operations for batch-
writing/reading the GX Developer project saved in the personal computer or the data
(programs, device comments, parameters, etc.) in the PLC CPU.

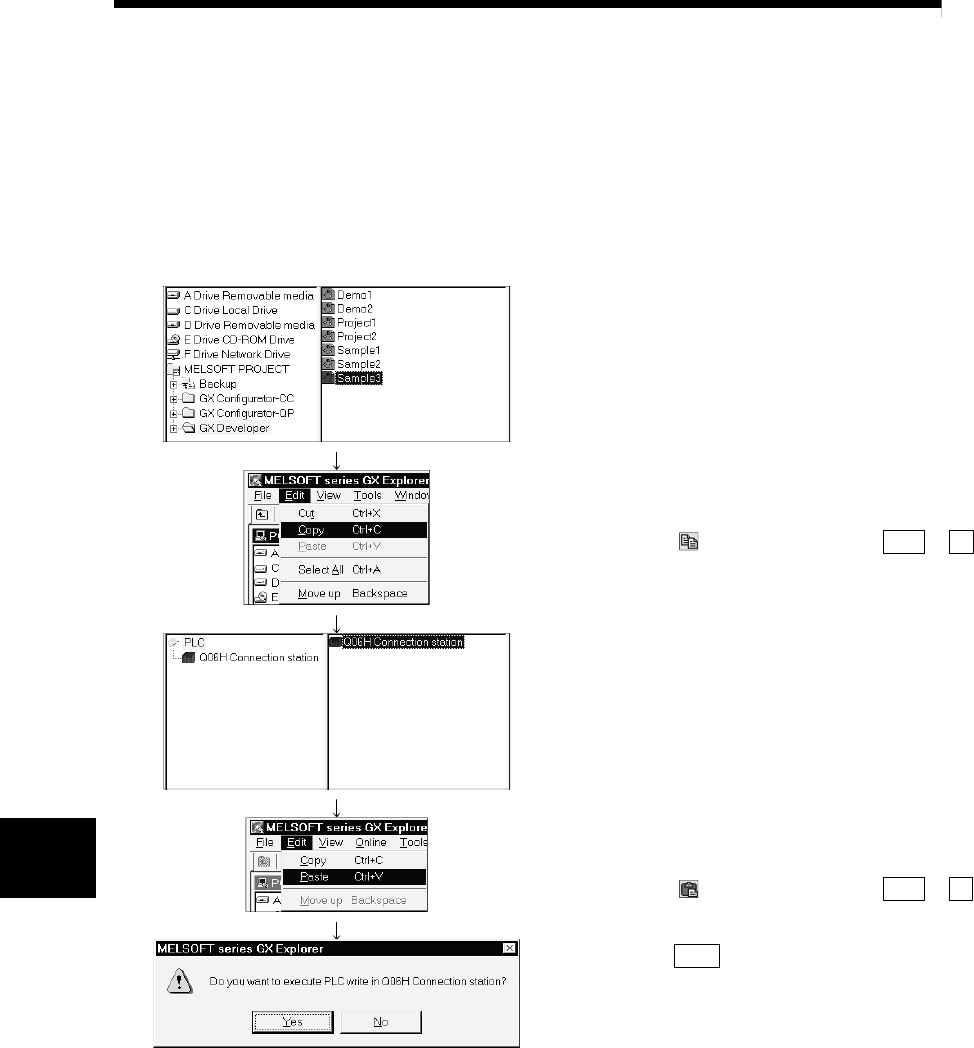

(1) Operation of menu-driven operation
1) In the PC side window, choose the GX Developer
project file to be written.
2) Click the [Edit] - [Copy] menu.
(You may also right-click, choose the [Copy] menu,
press the
button, and click the Ctrl + C keys.)
3) In the PLC side window, choose the write destination
station or memory (drive).
4) Click the [Edit] - [Paste] menu.
(You may also right-click, choose the [Paste] menu,
press the
button, and click the Ctrl + V keys.)
5) Click the Yes button in the write to PLC confirmation
dialog box.
7
