6 - 10 6 - 10
MELSOFT
6 MANAGEMENT OF PROJECTS IN THE PERSONAL COMPUTER

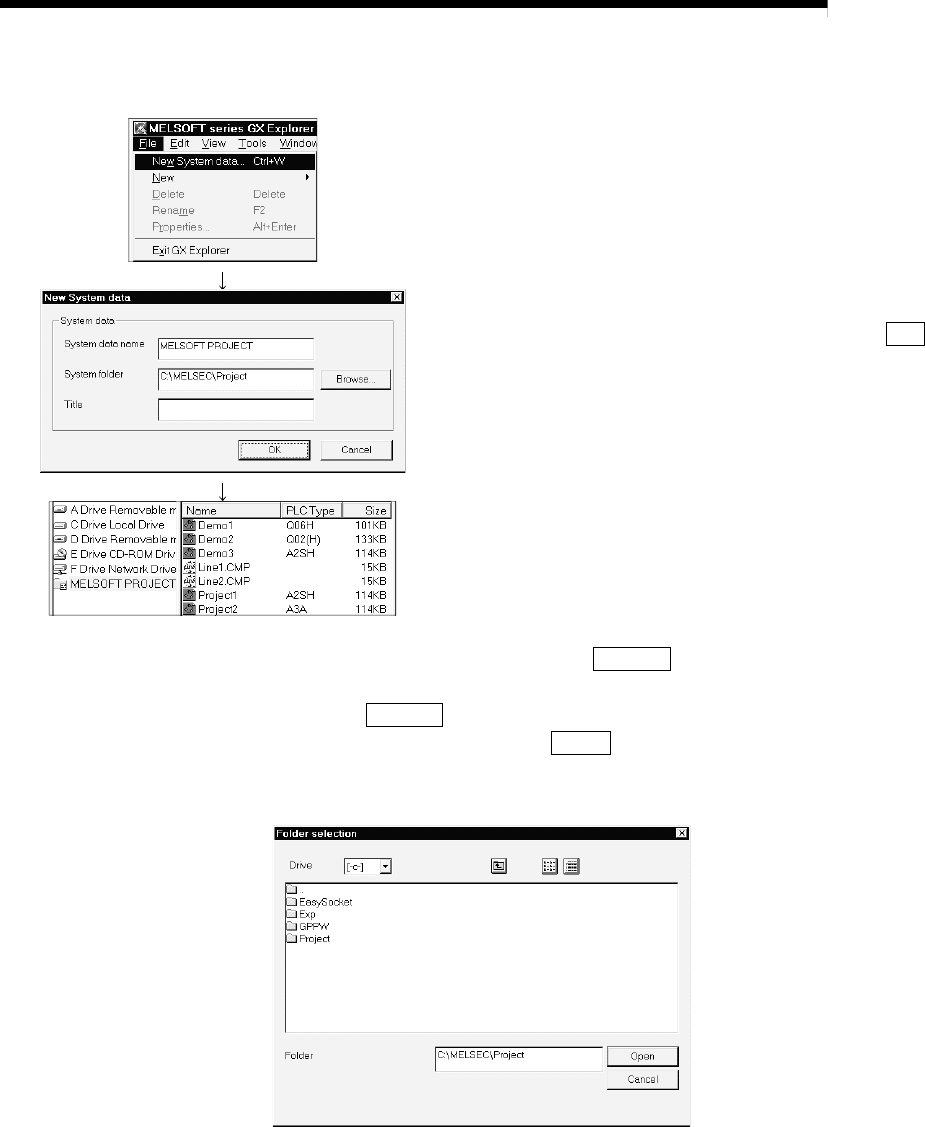

(2) Operation for creating new system data
1) Click the [File] - [New System data] menu.
2) Set "System data name", "System folder" and "Title" in
the New System data dialog box, and click the OK
button.
• The system data name may be different from the
folder name registered as system data.
• As the system folder, set the folder registered as the
system data.
3) The system data name appears on the same layer as
the drives in the project display field.
The system folder can be set from the Browse
button in the New System data
dialog box.
Clicking the Browse
button displays the Folder selection dialog box. Choose
"Drive" and "Folder" and click the Open
button.
The Folder selection dialog box closes and the folder selected is set in "System
folder" of the New System data dialog box.
