2 - 1 2 - 1
MELSOFT
2 SYSTEM CONFIGURATION
2 SYSTEM CONFIGURATION

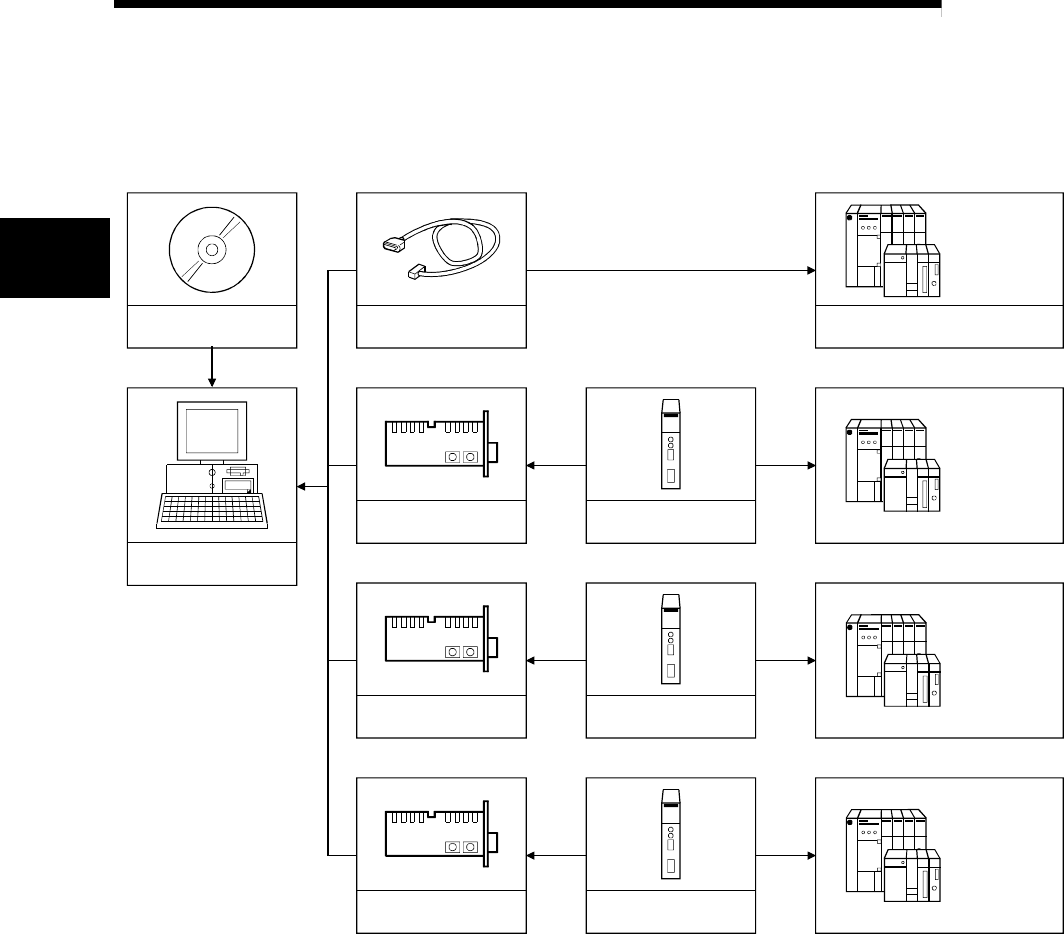

2.1 System Configuration
QnACPU
QCPU(Q mode)
(4) CC-Link board
(5) Ethernet board
(7) Network module
(8) Master/Local module
(9) Interface module
ACPU
QnACPU
QCPU(Q mode)
QCPU(A mode)
(6) PLC CPU
ACPU
QnACPU
QCPU(Q mode)
QCPU(A mode)
(2) CableGX Explorer
(1) Perasonal comperter
QnACPU
QCPU(Q mode)
(3) MELSECNET/10(H)
board
Remote I/O module
(1) Personal computer
Use the one that satisfies the operating environment given in Section 2.2.
(2) Connection cables
(a) About the USB cable (QCPU (Q mode) compatible)
1) Usable when Windows
®
98 and USB driver have been installed.
2) Unusable for Windows
®
95, Windows NT
®
, Workstation 4.0.
3) Use of the USB cable allows only one PLC CPU to be connected.
4) Use the USB cable which conforms to the USB Standard Rev. 1.1.
