1 OVERVIEW
(3) Read/write from/to PLC CPU

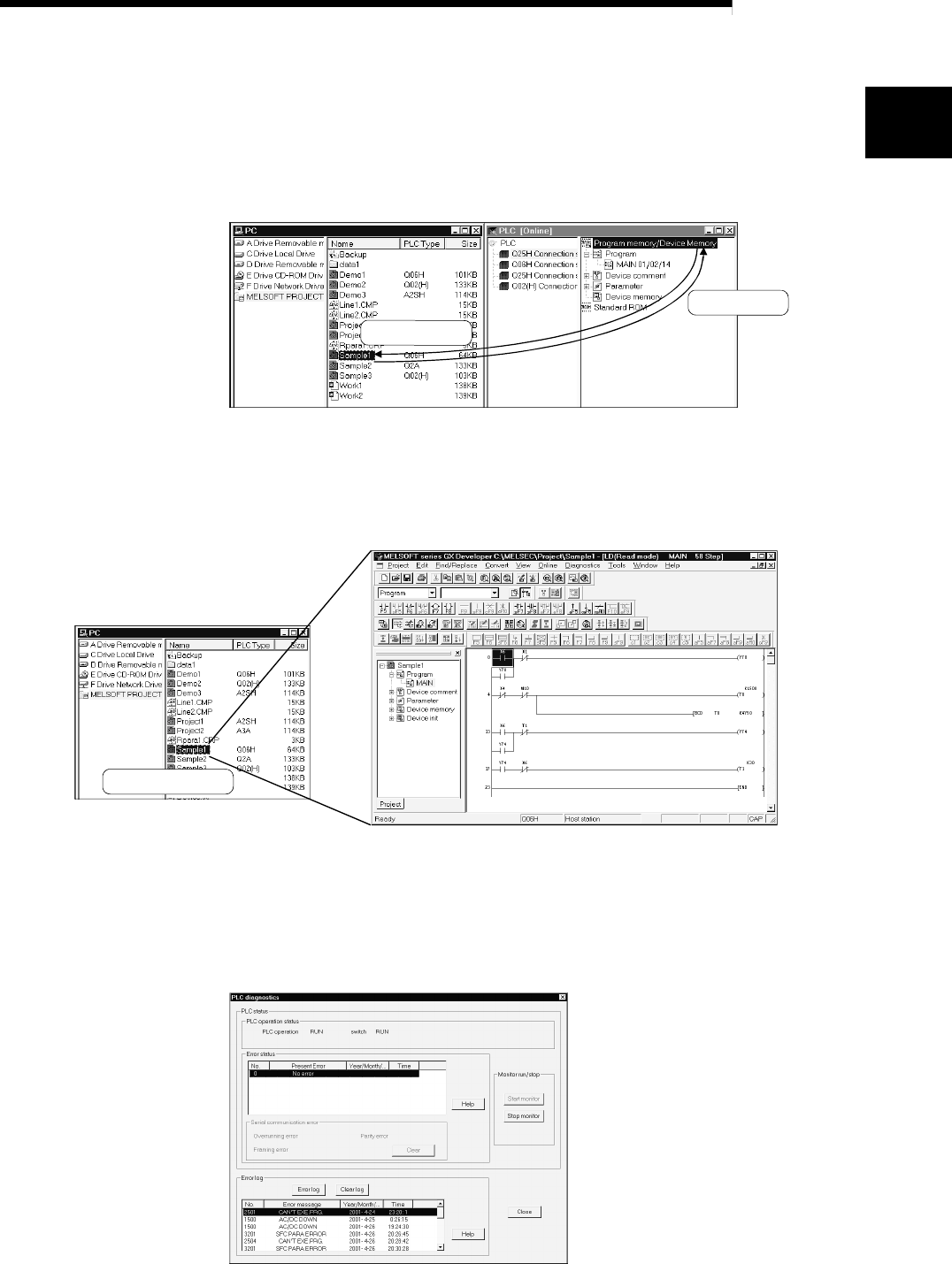

Read from PLC and write to PLC can be done easily by performing drag and
drop operation to the displayed PLC CPU. When performing write/read to/from
multiple PLC CPUs continuously, for example, the operations of starting GX
Developer and opening/closing a project are not needed, ensuring efficient
operations.
Write to PLC
Read from PLC
(4) Starting the related application
Double-clicking the project selected on GX Explorer starts the application used to
create that project, enabling you to edit and save the project.
Double-clicking a general file other than a project can also start the related
application.
Double-click!
(5) Diagnostic functions
By choosing the required PLC CPU from a list display, you can perform PLC
diagnostics, network diagnostics, CC-Link diagnostics, Ethernet diagnostics or
system monitor.
You can display the error status, fault history or like of the PLC CPU and check
the network-based system status or like.
1
