8 DIAGNOSTICS
8.4 Ethernet Diagnostics
You can check various settings of the Ethernet module.

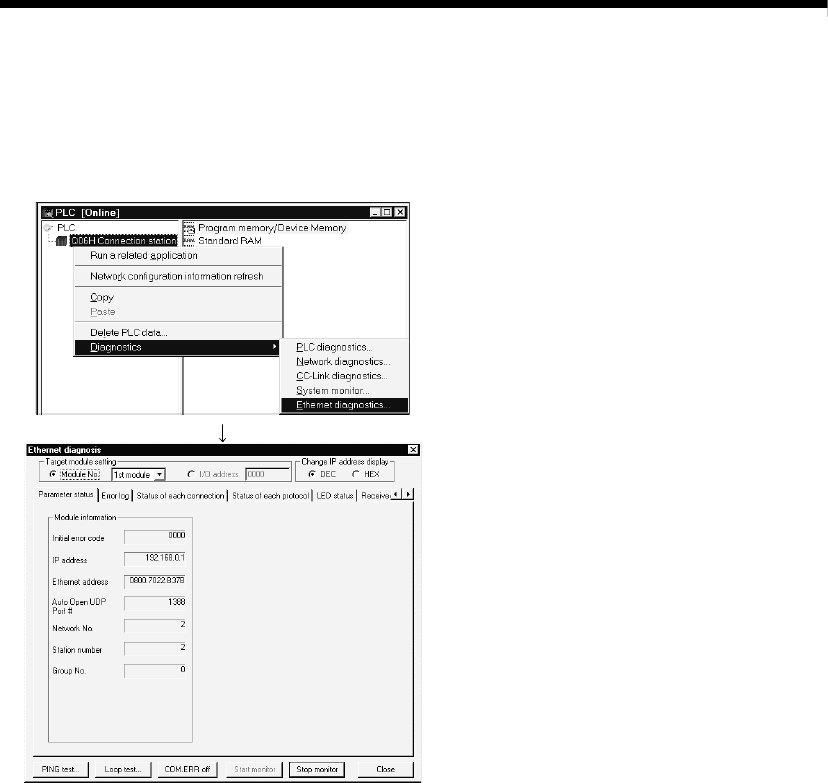

The following is the operation for displaying the Ethernet diagnostics dialog box.
1) Choose the PLC CPU to be Ethernet-diagnosed, right-
click, and click the [Diagnostics] - [Ethernet
diagnostics] menu.
2) The Ethernet diagnostics dialog box appears.
