8 DIAGNOSTICS
8.3 CC-Link Diagnostics
CC-Link diagnostics allow you to monitor the network information of each station and
diagnose and test the network status.

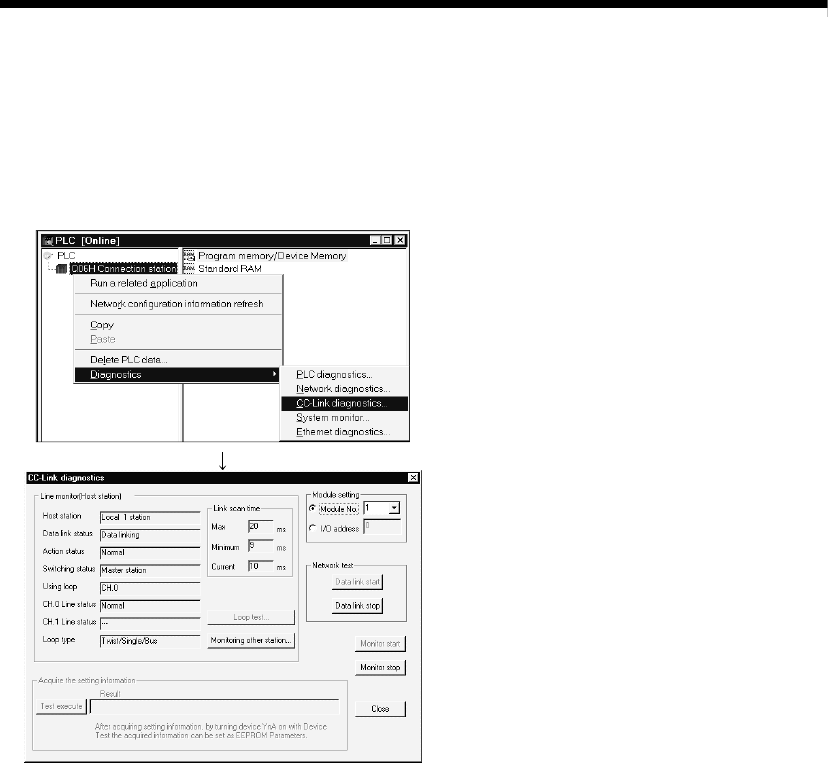

The following is the operation for displaying the CC-Link diagnostics dialog box.
1) Choose the PLC CPU of CC-Link to be diagnosed,
right-click, and click the [Diagnostics] - [CC-Link
diagnostics] menu.
2) The CC-Link diagnostics dialog box appears.
