Error
An operation error occurs in the following case. The error flag M8067 turns ON, and D8067 stores the error
code.
1) When the number of points occupied by the string data storage destination (device specified in )
exceeds the range of the corresponding device
(Error code: K6706)
Program example
In this program, word [signed] data stored in a device specified in is converted into string data, and the
data obtained by conversion is output to a device specified in .

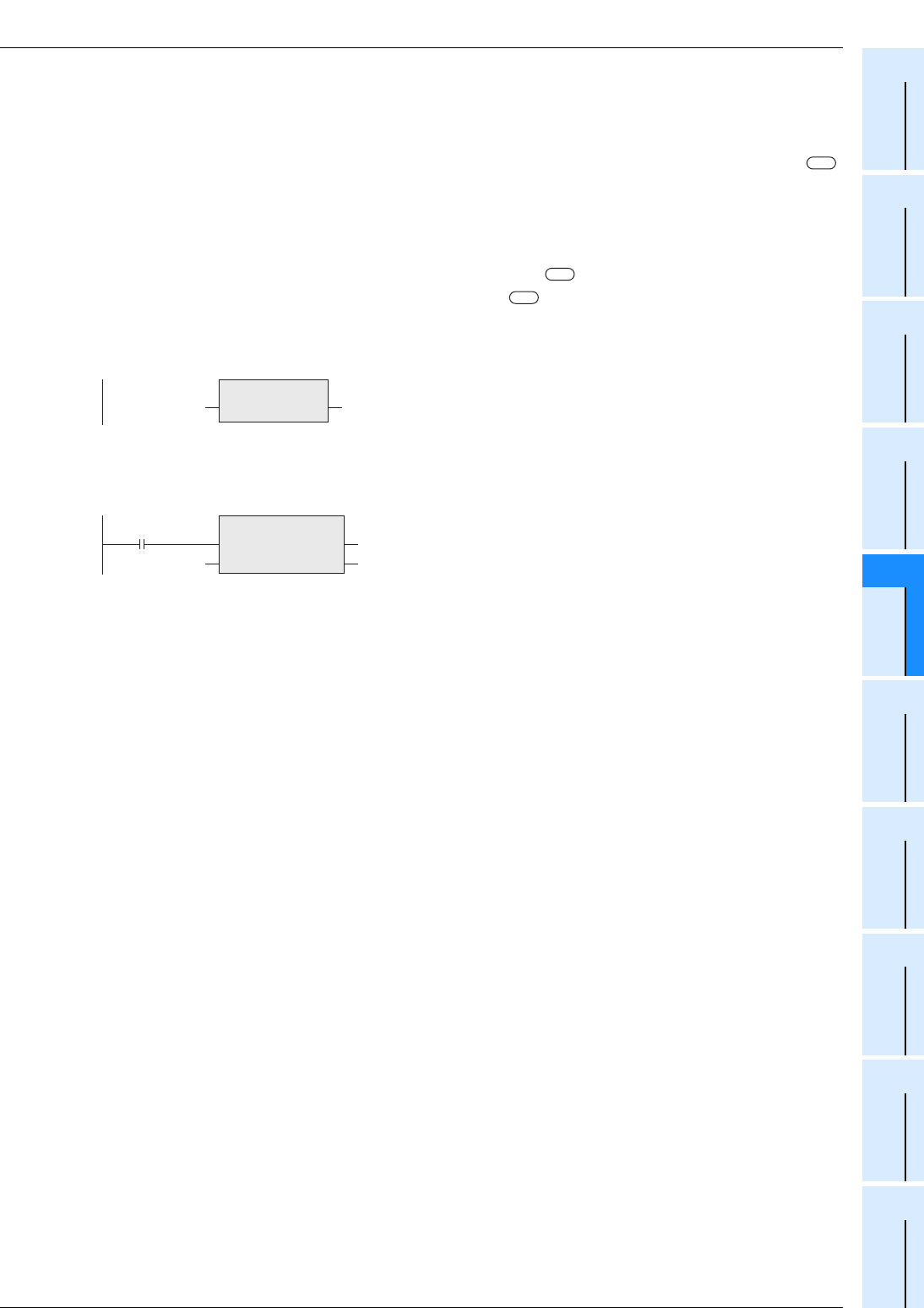

1) Function without EN/ENO(INT_TO_STR)
2) Function with EN/ENO(INT_TO_STR_E)
[Structured ladder]
[ST]
[Structured ladder]
[ST]
d
s
d
g_string='-12345'
INT_TO_STR
g_int1=-12345
_INT
g_string1 := INT_TO_STR(g_int1);
INT_TO_STR_E
EN ENO
g_string1
g_bool1
g_int1
_INT
g_bool3
g_bool3 := INT_TO_STR_E(g_bool1, g_int1, g_string1);
