FX1N Series Programmable Controllers Inputs 5.
5-5
1
2
3
4
5
6
7
8
5.2 AC110V Input Extension Block

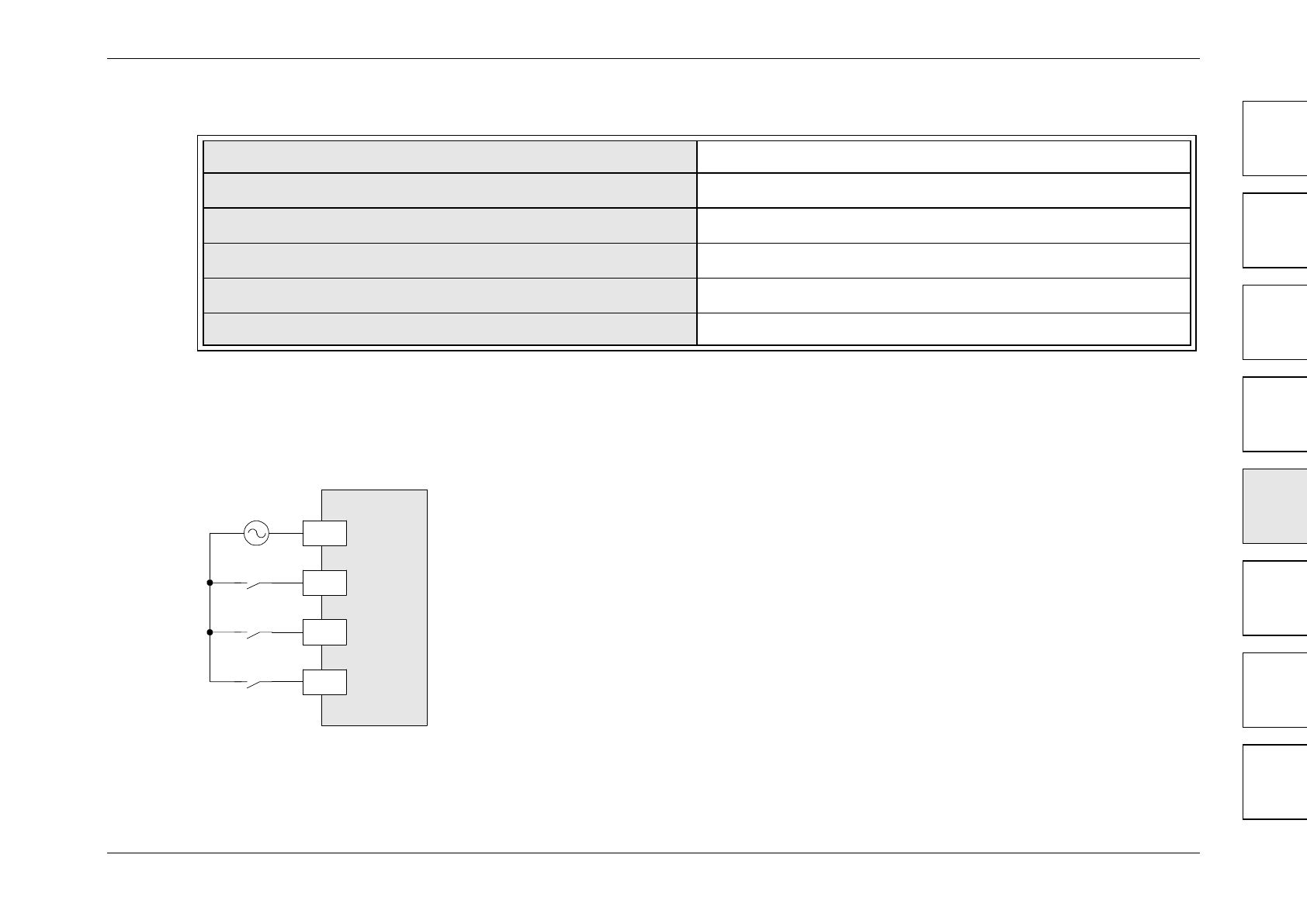

5.2.1 Input Circuit Connection
FX
0N
-8EX-UA1/UL
FX
2N
-8EX-UA1/UL
Input voltage
85-132V AC 50-60Hz
Input impedance
21k
Ω
/50HZ 18k
Ω
/60Hz
Input current
4.7mA 100V AC/50Hz 6.2mA 110V AC/60Hz
OFF
→
ON/ON
→
OFF; input switching current
80V 3.8mA/30V 1.7mA
Response time
25ms
Circuit isolation / Operation indication
Photocoupler/LED is lit
X0
COM1
85-132 V AC
50/60 Hz
X1
X2
