FX1N Series Programmable Controllers Installation Notes 3.
3-21
1
2
3
4
5
6
7
8
3.8.3 Extension I/O module and Special Function module

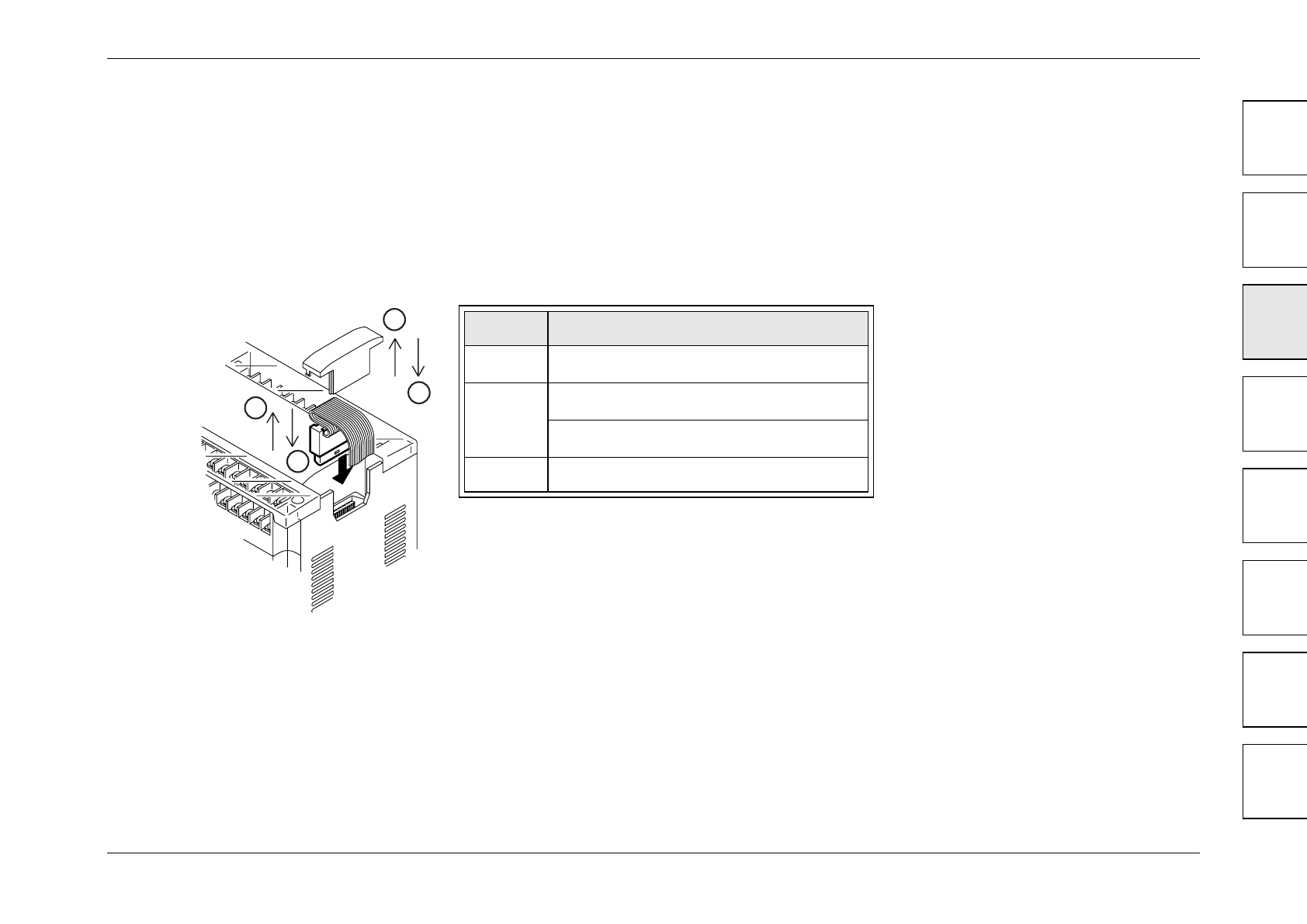

Install/remove extension module as shown in the figure below.
Caution
Cut off all phases of power source before installing/removing the extension module.
Ref. Description
1 Remove the extension bus cover.
2 or 2'
2: Install extension cable.
2': Remove extension cable.
3 Install the extension bus cover.
1
3
2
2 ’
