FX1N Series Programmable Controllers Installation Notes 3.
3-17
1
2
3
4
5
6
7
8
3.7.2 Removal and installation of quick-release terminal block
• Removal : Loosen the left and right screws evenly.
• Installation : Tighten the left and right screws evenly.
Tightening torque 0.4 to 0.5 N
•
m
Make sure that the center of the terminal block is not lifted
Do not tighten the left and right screws with a torque outside the above-
mentioned range.

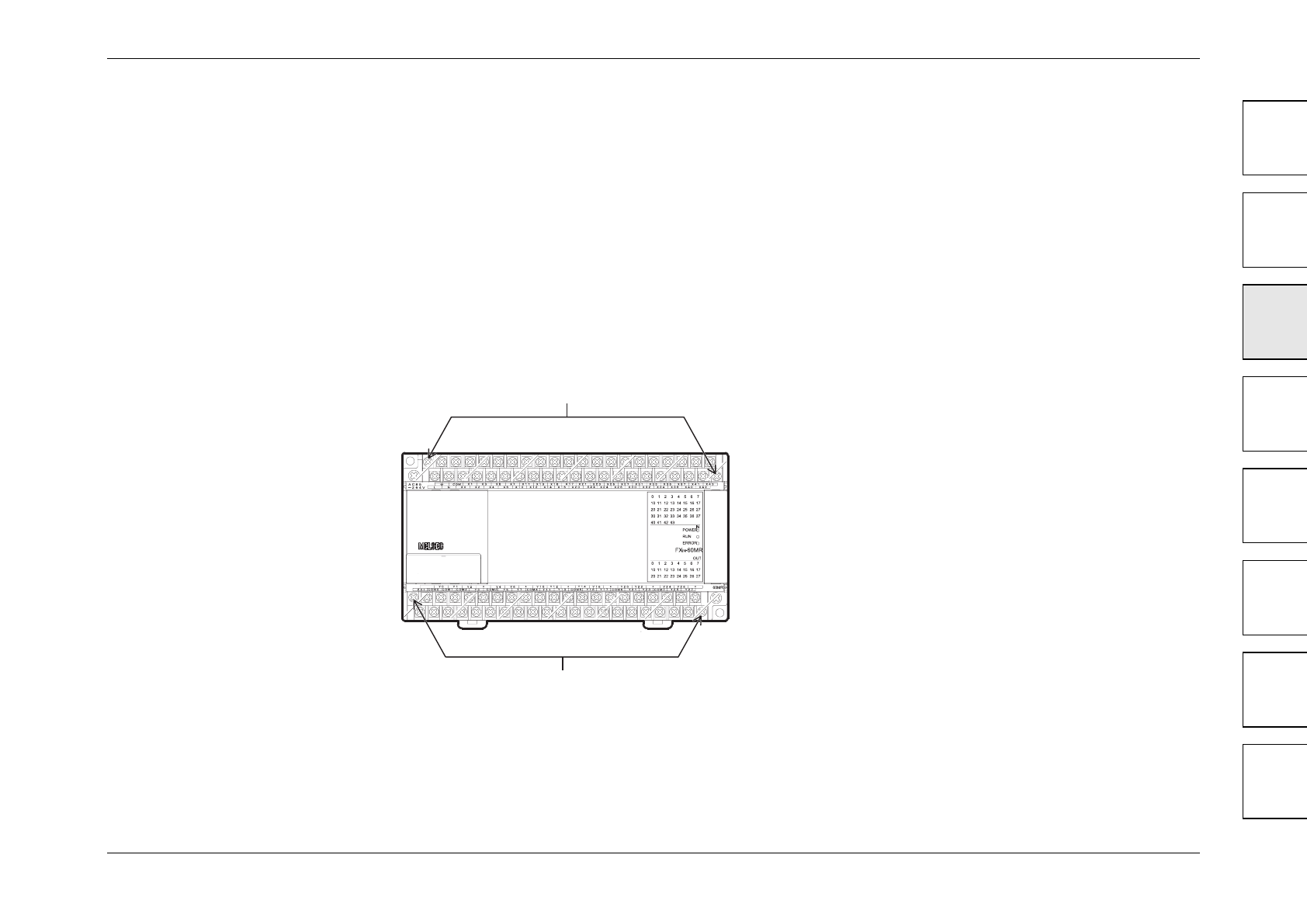

Loosen these left and right screws evenly to remove input terminals.
Loosen these left and right screws evenly to remove output terminals.
