FX1N Series Programmable Controllers Installation Notes 3.
3-16
2) Handle the crimp terminal of the following size when 2 wires are used per terminal. Refer to
Figure 3.6 for installation instructions.

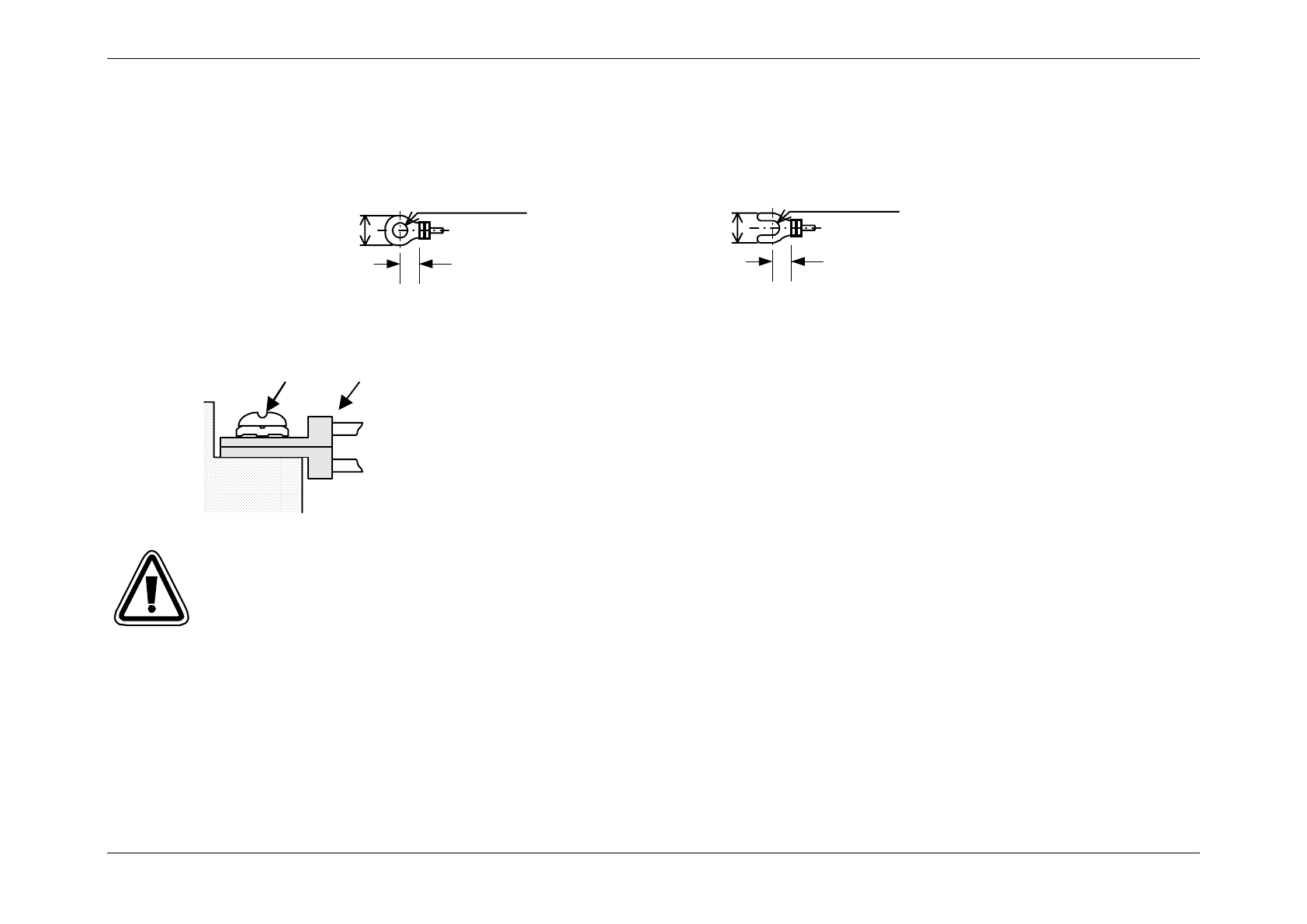

Figure 3.5:Crimp Terminal for M3 Screws
Figure 3.6:Installing 2 Wires Per a Terminal
Caution
• Make sure to turn OFF the power before starting any wiring work.
• The rated temperature of the cable should be 80
°
C or more.
6.2 mm (0.24" )
or less
φ
3.2 (0.13")
6.2 mm (0.24")
or less
φ
3.2 (0.13")
6.3 mm or more
6.3 mm or more
Terminal
Terminal
screw
Crimp
terminal
