FX1N Series Programmable Controllers Outputs 6.
6-8
6.3.3 Response Times
OFF times increase as the load current decreases.
For improved response times use a ‘dummy’ resistor, see the figure below. If a response time
of 0.5 ms or better is required when using ‘light loads’ use a ‘dummy’ resistor and ensure the
signal line has a current greater than 60mA/24V DC
Y000 and Y001 are high speed response
outputs with the following characteristics:
10 - 100mA at 5 - 24V DC, 100kHz maximum
output signal.
If a high speed response is required, a current
of 10 - 100mA must be used.

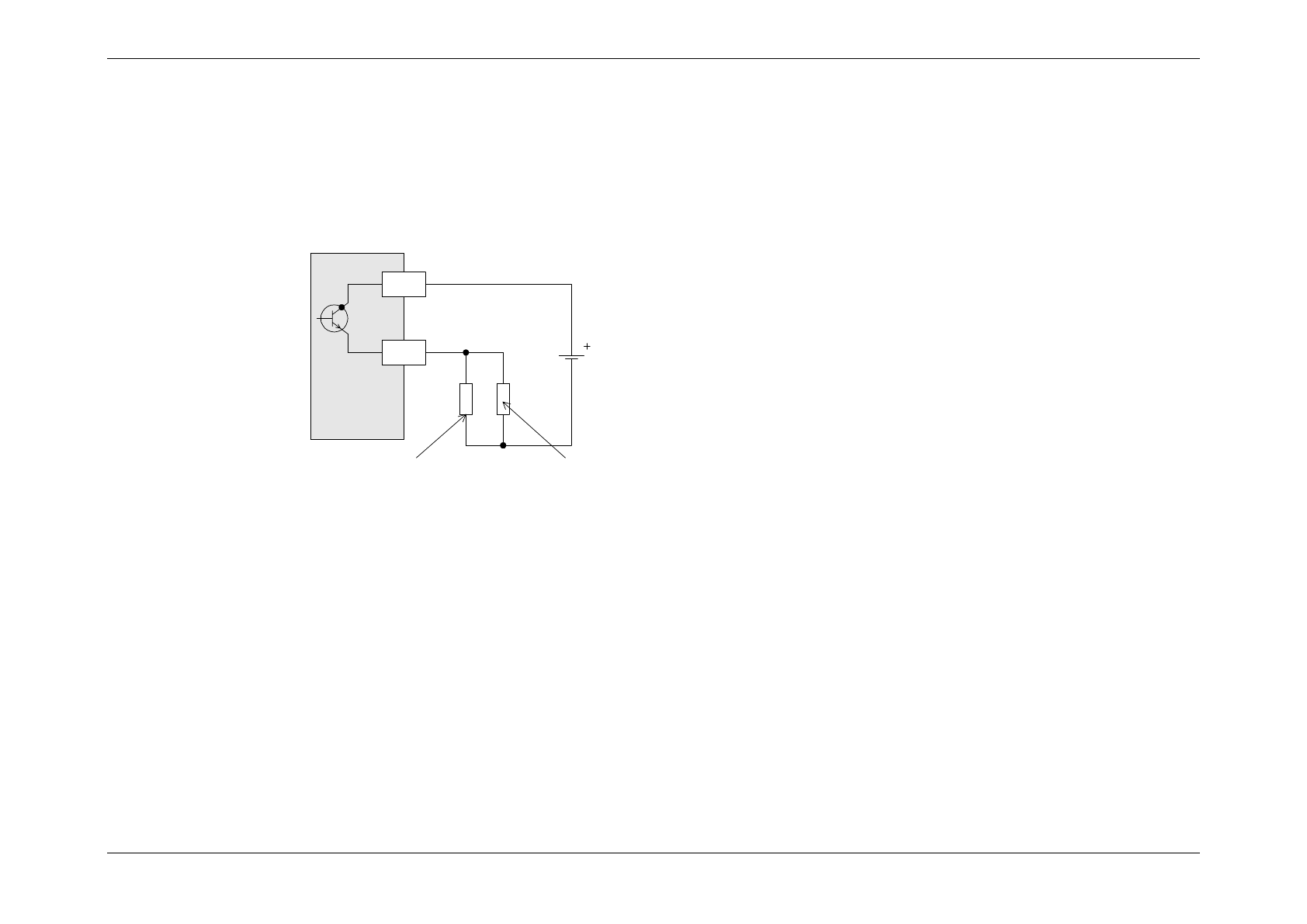

Y
+V
Dummy load Load
5 to 24V
60 to 200mA
Dummy
Load
