9. Machine Error Compensation
9.3 Example in Using a Linear Axis as the Base Axis
276

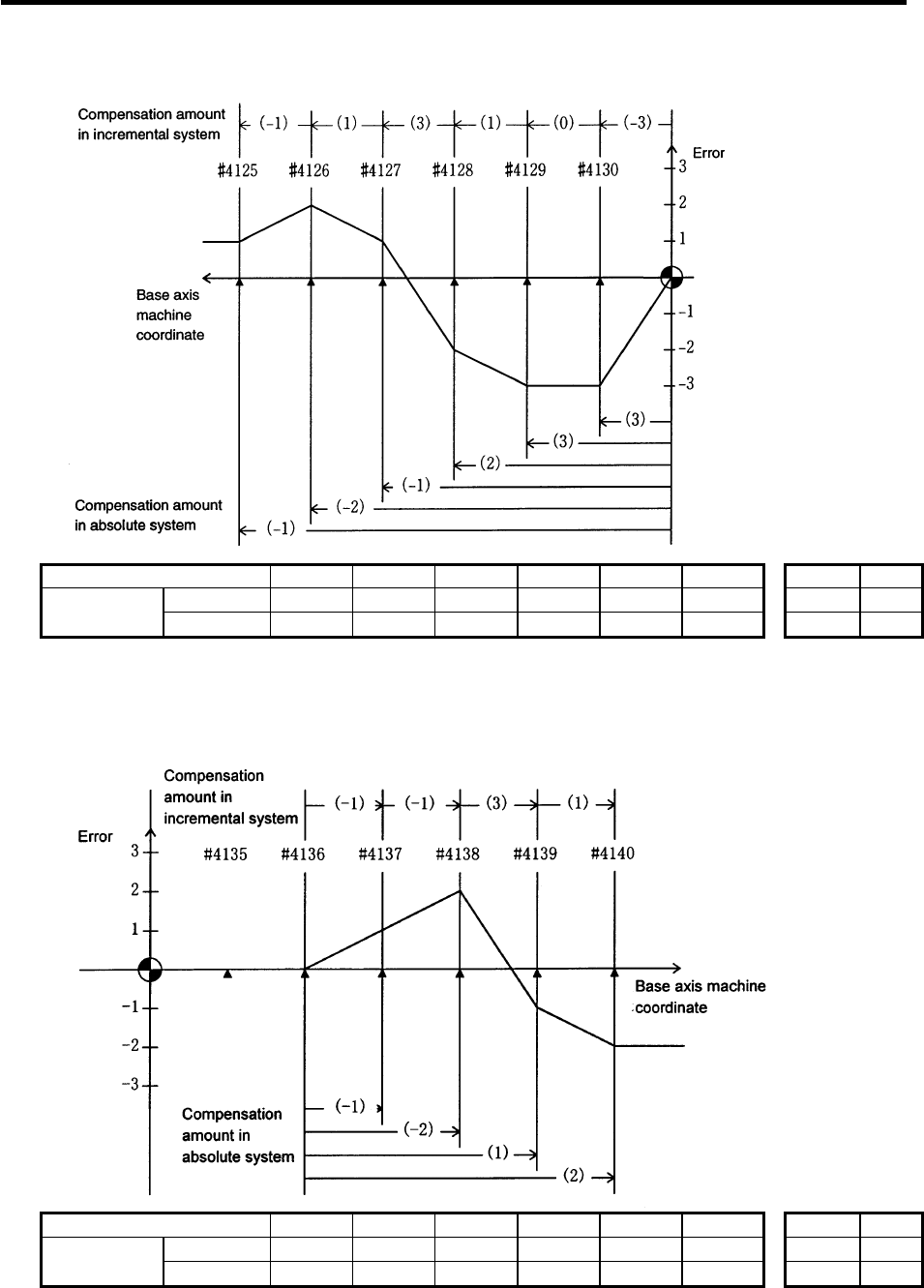

(3) When the range compensated is only the negative range:
Division point number #4125 #4126 #4127 #4128 #4129 #4130 rdvno 4130
Compensation Incremental
−2
2 6 2 0
−6
mdvno 4125
amount Absolute
−2 −4 −2
4 6 6 pdvno 4130
If the machine position exceeds "mdvno"‚ the compensation will be based on compensation amount at
"mdvno".
(4) When compensation is executed in a range that contains no reference point:
Division point number #4135 #4136 #4137 #4138 #4139 #4140 rdvno 4134
Compensation Incremental
−2 −2
6 2 mdvno 4136
amount Absolute
−2 −4
2 4 pdvno 4140
In this case‚ the compensation is executed in the range from "mdvno" to "pdvno". This setting rule
applies also when the compensation is executed in a range which contains negative machine
positions and no reference point.
