6 Set Up the Hardware
Issue 02 (2014-04-29)
14

The length of the Pgnd conductor should be less than 1 m.

The total length of the Ethernet cable between ODU and the IDU should be less than 100
m.


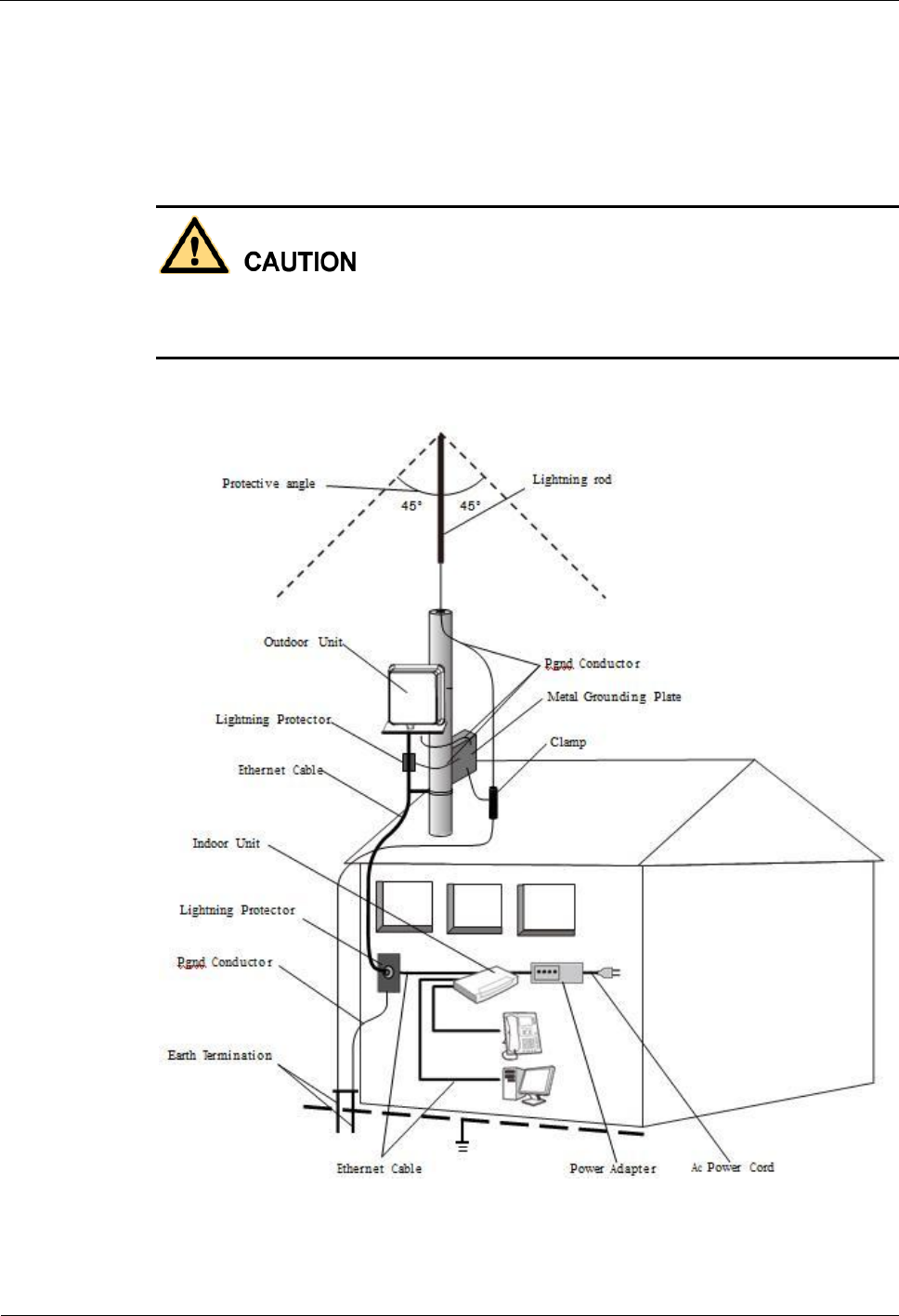

The ODU should be installed within the protective angle of the lightning rod which is 45
degree as showed below.
The lightning protector is a PoE type, it can be purchased in the open market. The surge
current rating of the protector is 300 A, 10/1000us per Bellcore 1089 and 3 kA, 8x20us per
IEC 61000-4-5.
Figure 6-10 Lightning Protector
For the lightning rod's installation, please refer to the Quick Start Guide of your lightning rod.
