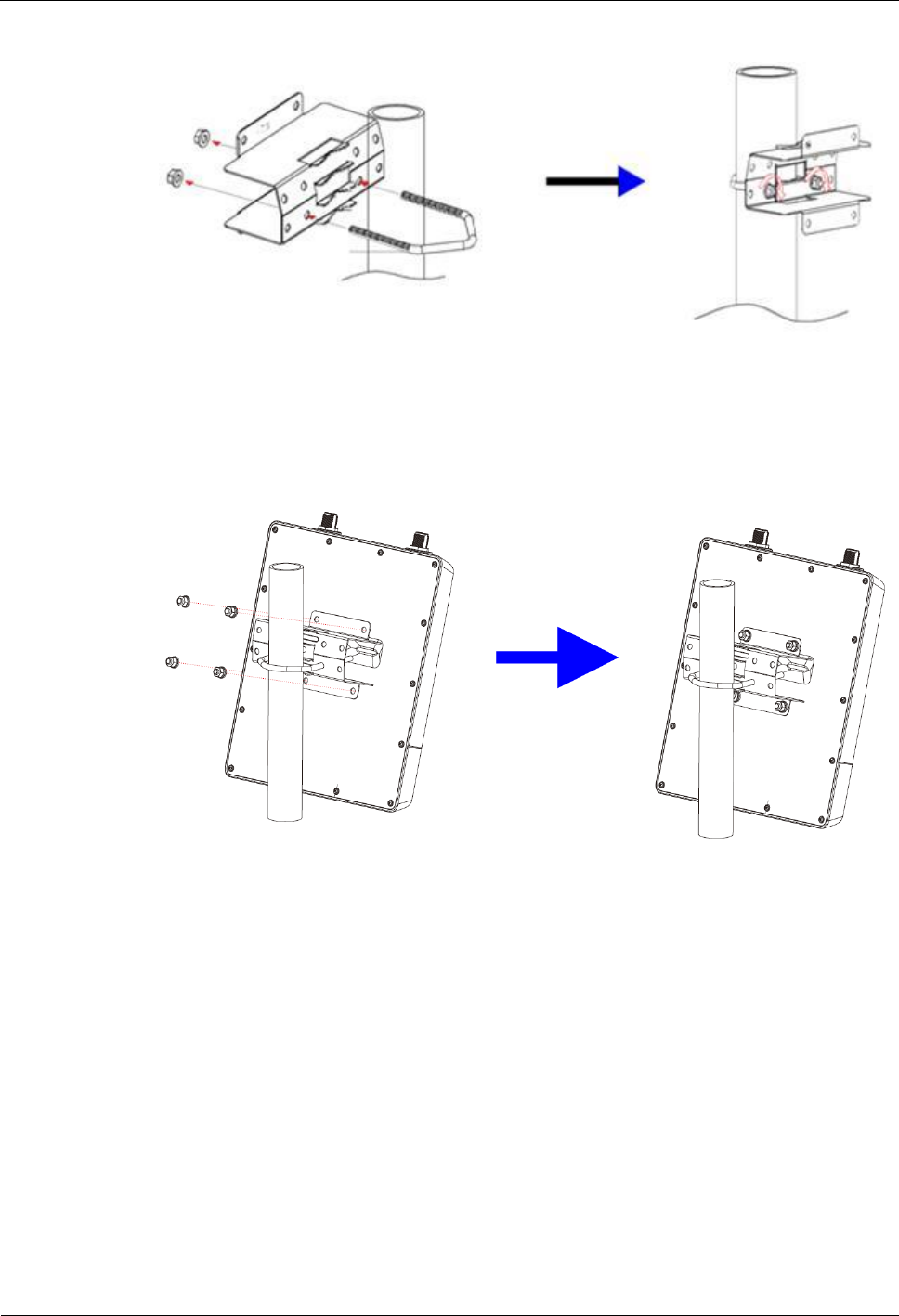

Figure 6-8 Connect theUBolt
Step 3 Align the four edge holes on the mounting bracket with the screws on the rear of the LTE
Device. Then use a wrench to tighten the four nuts with the screws.
Figure 6-9 Attach the ODU to the Bracket
----End
6.7.1 Recommended Scheme
To avoid factitious damage to the equipment and ensure your personal safety and proper use
of the product, stick to the following requirements:

The ODU must be grounded.

PoE lightning protector should be installed at the ODU side and the building entrance.

The size of the grounding bar depends on the actual situations. The recommended size is
50 mm x 50 mm x 5 mm.

The diameter of the pole ranges from 40 mm to 63 mm.

The building must provide a grounding grid and a ground point for lightning rod and
equipment grounding. In additional, the earth resistance must be less than 10 ohm.
