6 Set Up the Hardware
Issue 02 (2014-04-29)
12

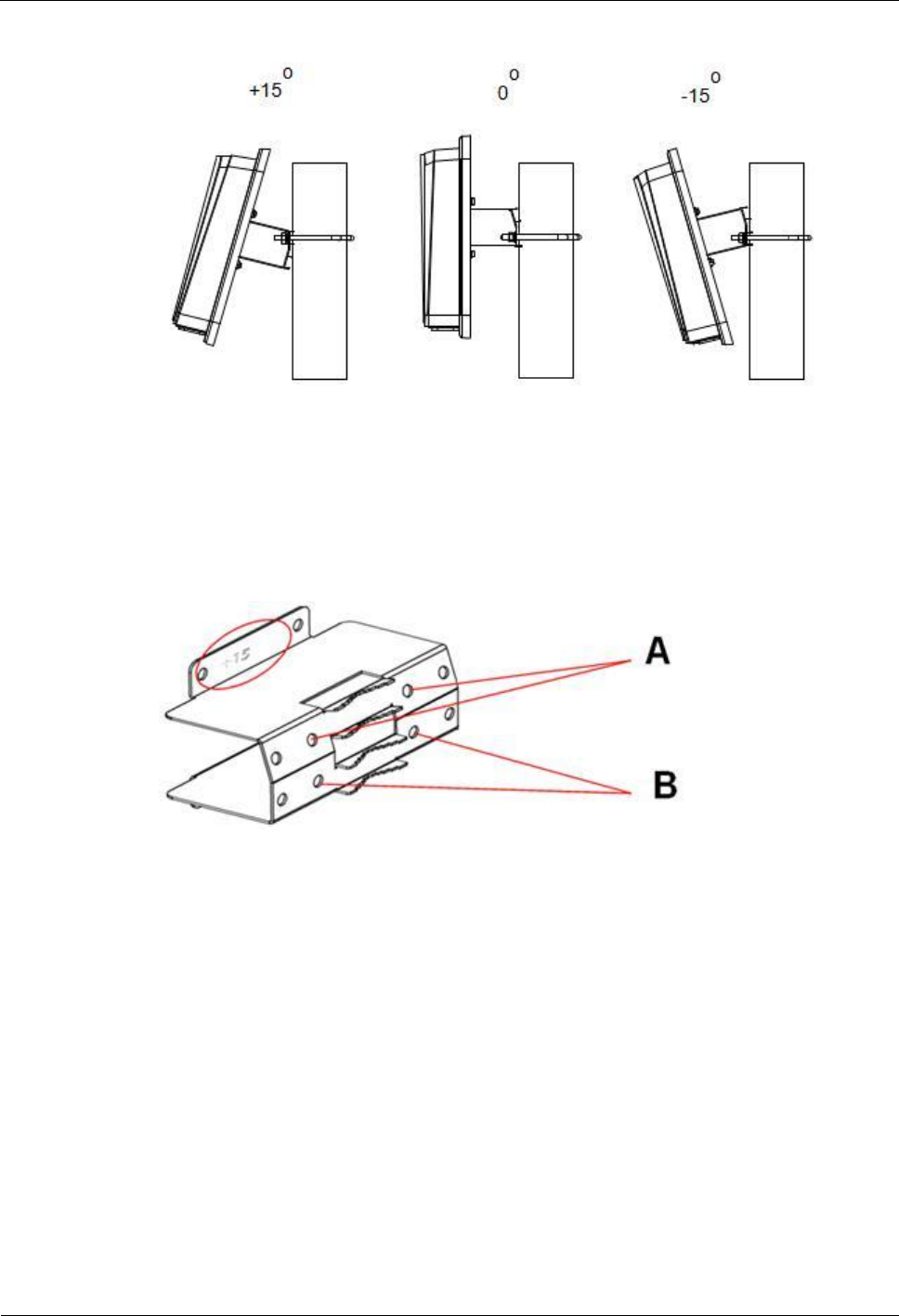

Figure 6-6 Installation Angle
Step 1 For +15° and 0° angle installations, position the bracket with the +15° mark on the top.

Use the two holes (marked as A) for +15° angle installation.

Use the two holes (marked as B) for 0° angle installation.
Figure 6-7 Bracketanglemark
Step 2 Align two M6 nuts to the bottom two holes to attach the pole bracket to the U bolt on a pole
or mast. Use a wrench to tighten the nuts with the U bolt.
