To make any adjustment to the unit, make sure you are off theTo make any adjustment to the unit, make sure you are off the

To make any adjustment to the unit, make sure you are off the

bike, and that the trainer has come to a complete stop andbike, and that the trainer has come to a complete stop and

bike, and that the trainer has come to a complete stop and

that nothing is still moving.that nothing is still moving.

that nothing is still moving.

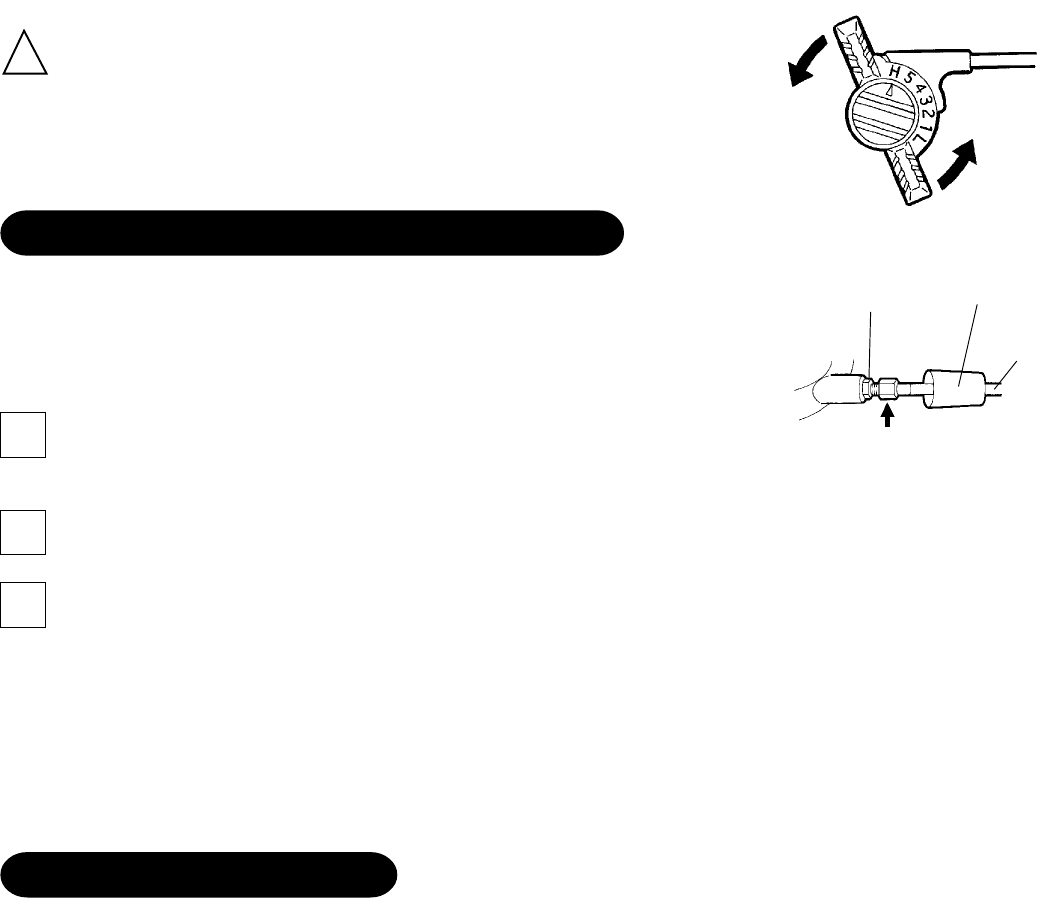

(Fig. N)

If you cannot shift to either the lowest (L) or the highest (H) position, it is possible

that the inner wire of the remote shifter cable is too long and the wire tension is

loose. If so, please adjust the tension with the following steps.

Wire Tension

Adjusting Screw

Nut Plastic Cap

Cable

(Fig. O)

TROUBLE SHOOTING YOUR REMOTE SHIFTER UNIT

Set the remote shifter lever at “H” position. Remove the remote shifter

device from the handlebar and straighten the cable.

Remove the plastic cap located on the bottom of the cable. (see Fig. O)

Hold the adjusting screw with your right hand and push it towards the

direction of the outer cable, then adjust the nut with your left hand to make

the wire tension properly.

If you experience that the remote lever will move toward “H” unexpectedly automarically when you pedal hard,

try to tighten the adjusting screw 1/4 rotation. The screw is located under the remote lever holder.

ABOUT SLIPPAGE PROBLEM

The pateneted roller system used in the rim drive models from Minoura is made to fit a wide variety of bicycles

and wheels. Therefore, you should expect that sometimes the rollers will slip a little on your rims. This is com-

pletely normal and due to the spring mechanism we use that provides a fit with such a large variety of bicycles

and wheels.

If you experience slippage all the time you use the trainer, check the belt tension first by pushing down the belt

with your finger. The V-belt will be worn down after long term use but most reason for the slippage problem is

caused by improper (too much or too less) tension adjustment.

To adjust the belt tension, loosen both upper and lower bolts which hold the pulley arm by an M5 hex wrench,

then pull the arm outward by your hand and tighten the bolts firmly again.

If the V-belt is completely worn down or damaged, replace it.

This work requieres high skill for disassembling and assembling the Mag unit. If you don’t have confidence,

please ask to the Minoura dealer where you purchased the trainer.

The instructions manual will come with the replacement V-belt kit, also you can download it from our web site

(http://www.minoura.jp).
