USER GUIDE
40

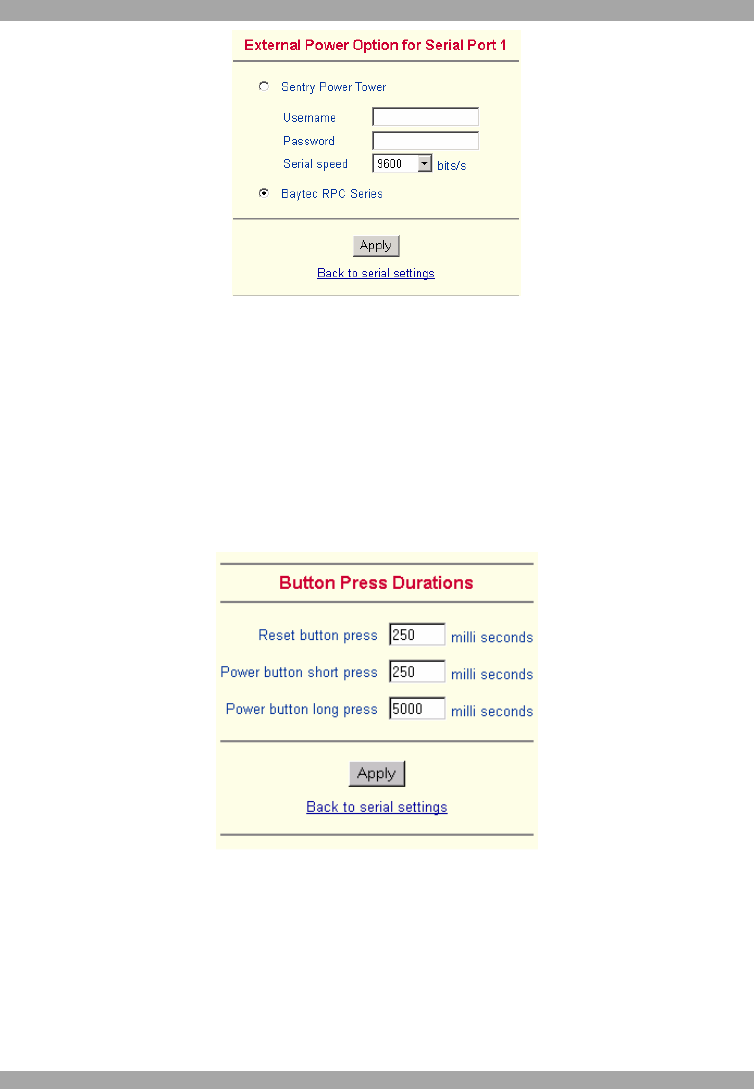

Figure 31 External Power Option for Serial port 1
Serial Port 2
This port provides the power control options, see page 20. Choose a suitable setting
and fill in additional required options. DX User IP supports the following:
Internal Power Option - This option gives access to the ATX power and reset
functions of a single connected system. You can change the duration of each button
press. To do so, click Change button press durations. The box below appears. Adjust
the time as desired.
Figure 32 Button Press Durations box
External Power Option
To configure the External Power Option connected to Serial port 2, click change
external power switch option. The following appears.
