USER GUIDE
38
Check interval - Interval for reporting again to the Dynamic DNS server by DX
User IP.
DX User IP has its own independent real time clock. Ensure the time setting is
correct by configuring a timeserver see page 35.
DX User IP registers itself to the Dynamic DNS server slightly different from the
time configured. To reduce load peaks on the server we add a random time (0-10
min) to the absolute time value.
35. Serial Port Settings
From the DX User IP Menu choose Serial Port Settings. The Serial Port Settings
appear. See Figure 30.

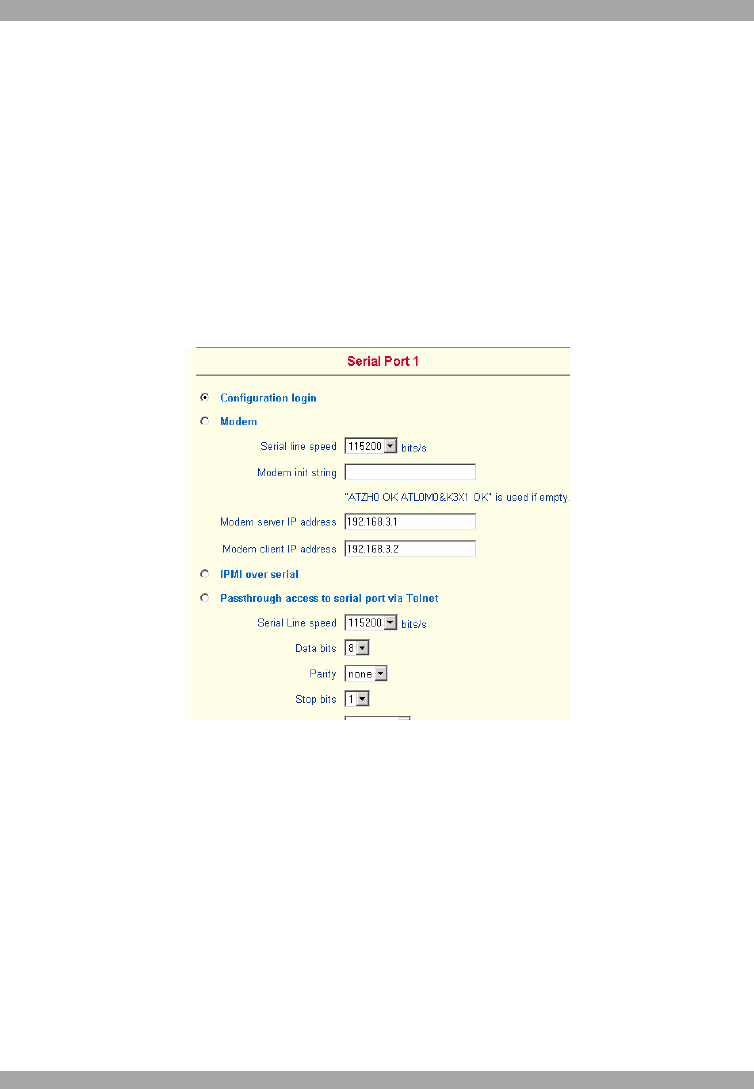

Figure 30 Serial Port Settings
In the DX User IP Serial Settings specify the devices connected to the two Serial
ports.
Serial Port 1
The port options are listed below
Configuration login –If this option is checked you can only use the port for the
initial configuration and no other function.
Modem - DX User IP has the option of remote access using a telephone line.
Connect the modem to Serial 1 port. Using a telephone line means building up a
dedicated point-to-point connection from your console computer to the DX User IP.
