USER GUIDE
28
Each selection adds the outlet to the list at the bottom. The order of powering off/on,
will be the order as set out in this list.
Changing the order
To change the order the outlets are powered on/off:
Highlight the desired outlet and move it using the arrows.
30. Video Settings
From the menu choose Video Settings. The Video settings appear. See Figure 23.

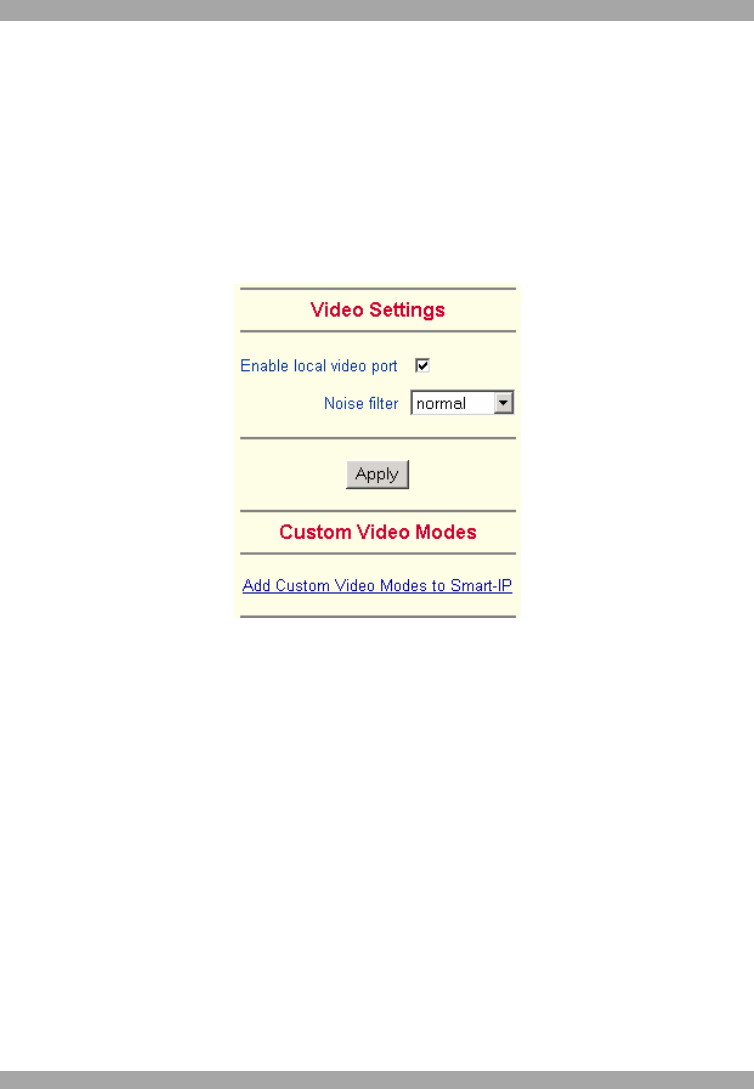

Figure 23 Video Settings
Enable local video port
This option decides if the video output on the local monitor connected to DX User
IP is active and passing through the incoming signal from the host system.
Use this option to switch off the local monitor connected to DX User IP when
accessing sensitive information on the Host computer.
Noise filter
Define how DX User IP reacts to small changes in the video input signal. A large
tolerance needs less network traffic and leads to a faster video display, but small
changes in some display regions may not be recognized immediately. A small
tolerance displays all changes instantly but may lead to a constant amount of
network traffic even if display content is not really changing (depending on the
quality of the video input signal). The default setting should be suitable for most
situations.
