DX USER IP
23

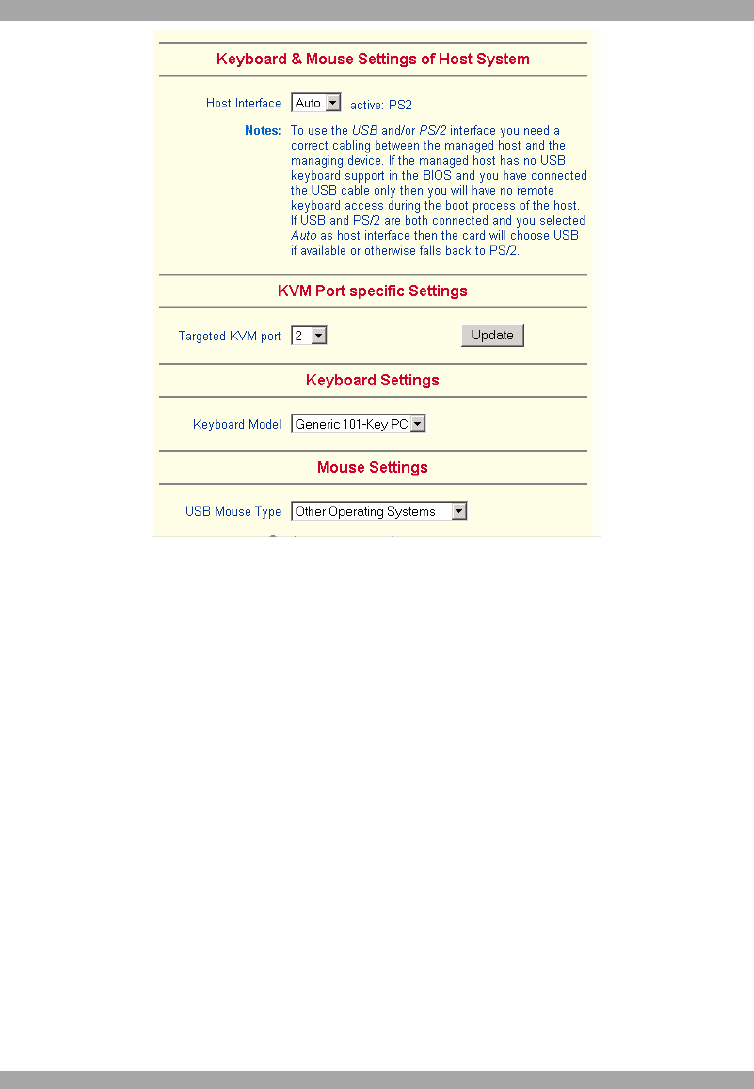

Figure 18 Keyboard & Mouse Settings
The elements of the Keyboard & Mouse Settings are explained below.
Host Interface – Only Auto or PS/2 are active. USB is for future applications.
Keyboard Model - Choose the keyboard model for the chosen port. Select Generic
106-key PC when connecting to computers with a Japanese OS.
USB Mouse Type – Not active in the system, leave at the default state.
Auto Mouse speed
When Mouse Acceleration on the Host computer is enabled, check Auto Mouse
speed. We highly recommend disabling the Mouse Acceleration.
Fixed Mouse speed
When Mouse Acceleration on the Host computer is disabled, select Fixed Mouse
Speed see Figure 19. Also in the Scaling drop-down menu select 1.00.
Repeat this procedure separately for each Host computer.
