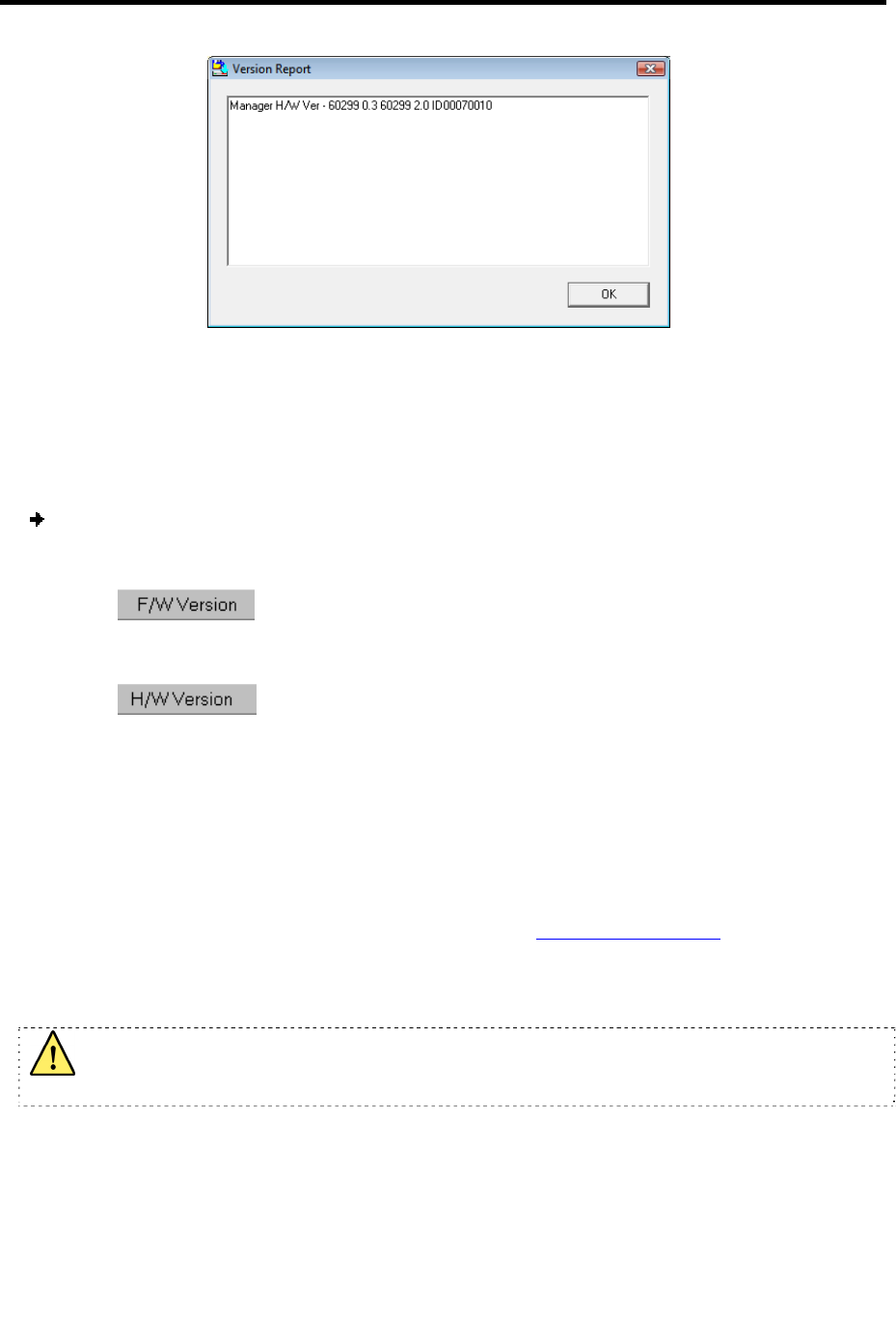

Figure 86 – Hardware Version Report
RICC/ROC Version
Before you can select a RICC/ROC, you must clear the 116 IP Switch checkbox.
To verify the RICC/ROC version number:
1. Select one or more or all of the RICC/ROCs.
2. Click
.
The firmware version number appears.
3. Click
.
The hardware version number appears.
When “Not responding” appears, it indicates that no computer is connected, or
that it is switched off.
6.3.8 Obtaining New Firmware
Download the latest firmware for your system from www.minicom.com.
Updating the Firmware
During the Update process, do not switch off any computer connected to the
SmartRack 116 IP system.
Firmware Update generates one log file per session. This log file, which is located in
the Windows directory, displays a chronologicallist of actions. You can read the log file
in any ASCII text editor
