Operating the SmartRack 116 IP Switching System Locally
Upgrading the SmartRack 116 IP Firmware
88 | SmartRack 116 IP

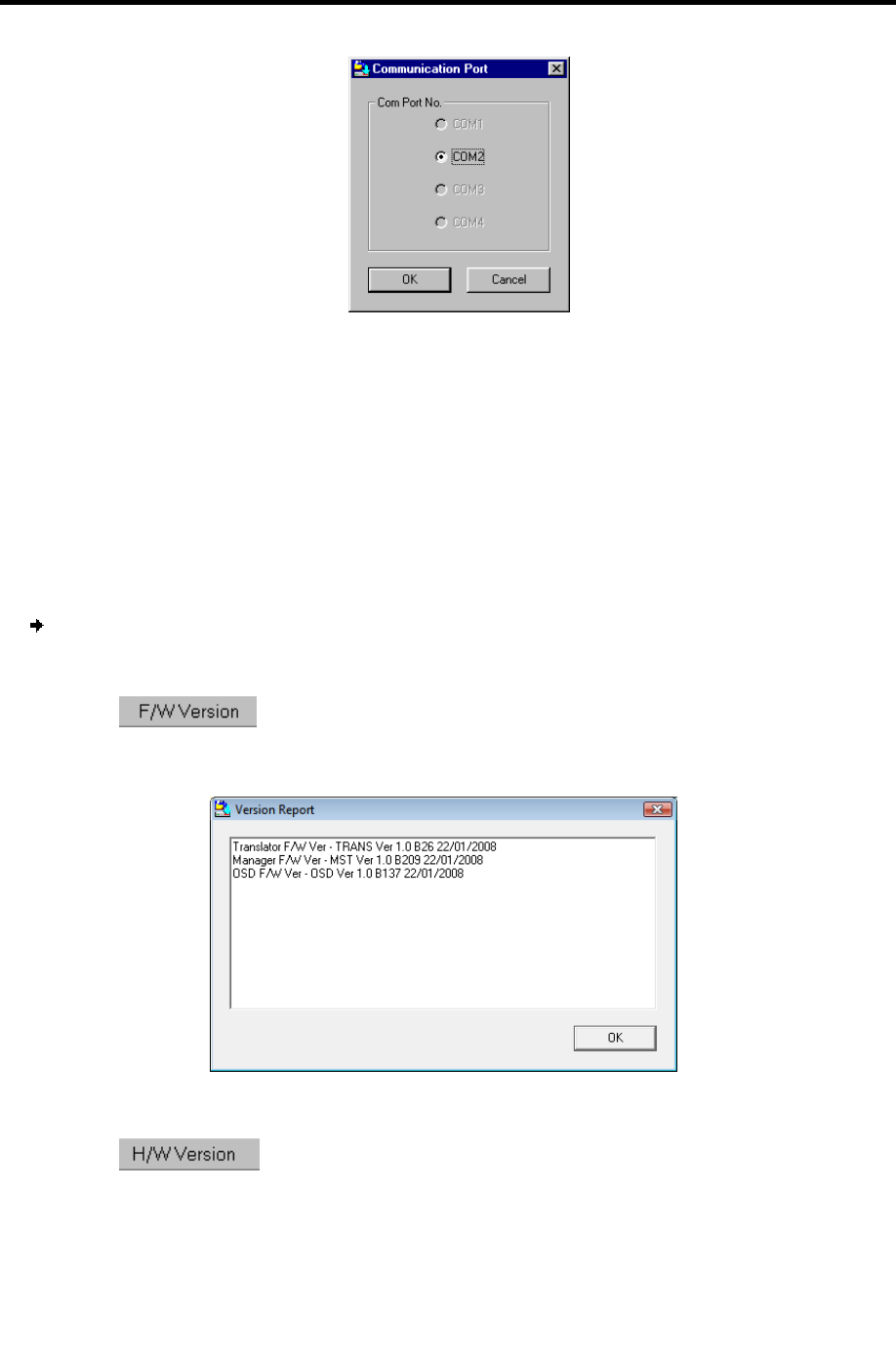

Figure 84 – Communication Port Dialog Box
4. Choose the Com Port that the RS232 Serial cable is connected to, and click OK.
6.3.7 Verifying the Version Numbers
Before upgrading the firmware, you must verify which firmware and hardware
versions you have.
SmartRack 116 IP Switch Version
To verify the SmartRack 116 IP Switch version:
1. Select the Manager Unit checkbox.
2. Click
.
The firmware versions of the Translator, Master, and OSD appear.
Figure 85 – Firmware Version Report
3. Click
.
The hardware version of the Translator appears.
