Operating the SmartRack 116 IP Switching System Locally
Upgrading the SmartRack 116 IP Firmware
86 | SmartRack 116 IP

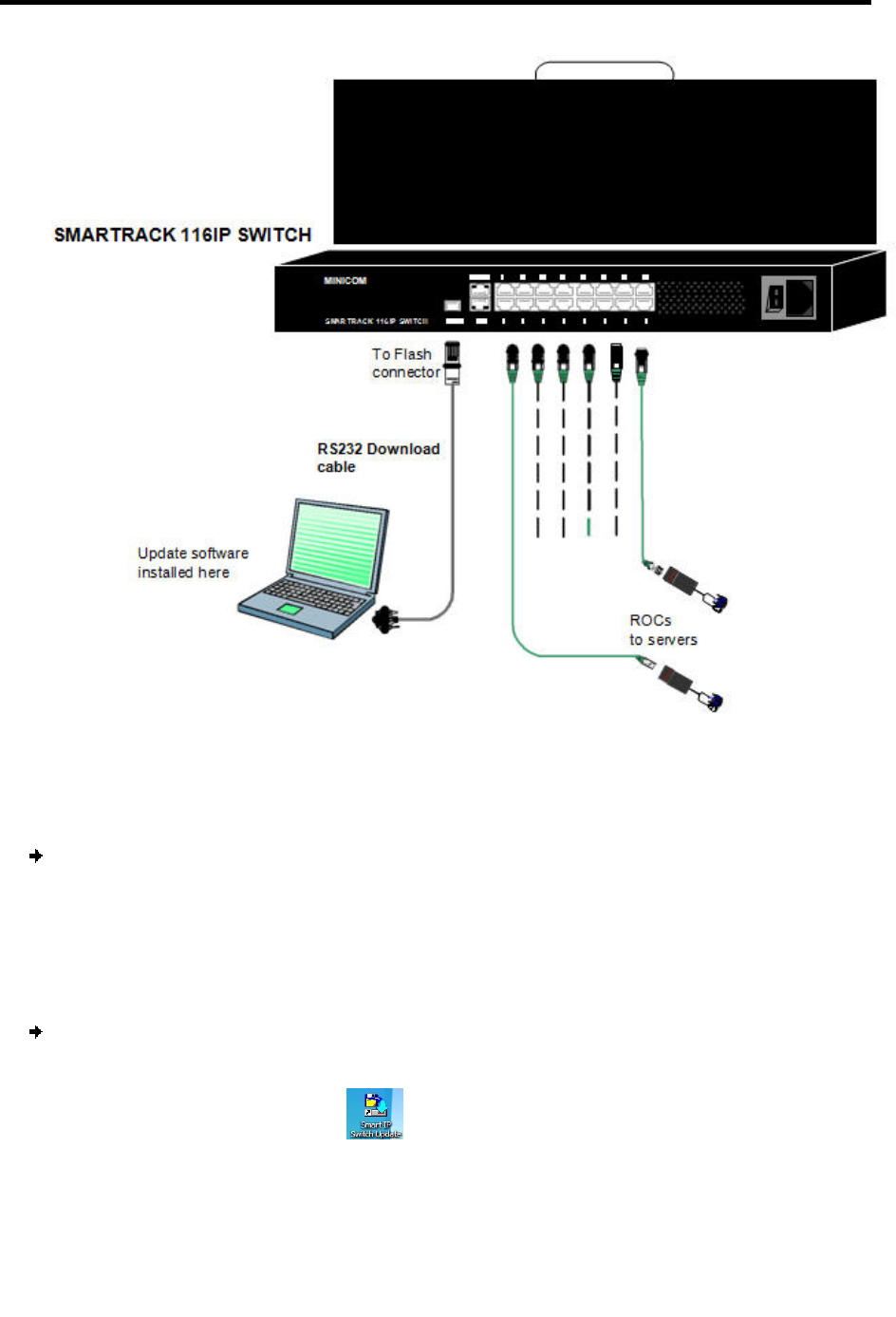

Figure 82 – RS232 Cable
6.3.5 Installing the Software
To install the Update software:
1. Download the software from the Support section of Minicom’s website.
2. Install the software on the computer’s hard drive.
6.3.6 Starting and Configuring the Update Software
To start and configure the Update software:
1. Select Start/Programs/Smart IP Switch Update/Smart IP Switch Update or click the
shortcut icon on the Desktop
.
The Smart IP Switch Update window appears.
