To change a user name or password:
1. In the Security Settings window, navigate to the desired row and column.
2. Type a new user name and/or password. User authentication is done solely via the
password; there is no security significance to the name.
By default, the User Profile settings are full access.
6.2.9 OSD Functions (F1)
The OSD has functions that you can activate from the main window. These functions
include:
Scan (F4)
Tune (F5)
Move Label (F6)
New Monitor - DDC2 (F10)
You can view the available functions from the OSD Help window.
To view the available OSD functions:
1. In the General settings window (see Figure 76), press F1.
The Help window appears. It
displays the functions that can be performed from
the main window (see Figure 74).

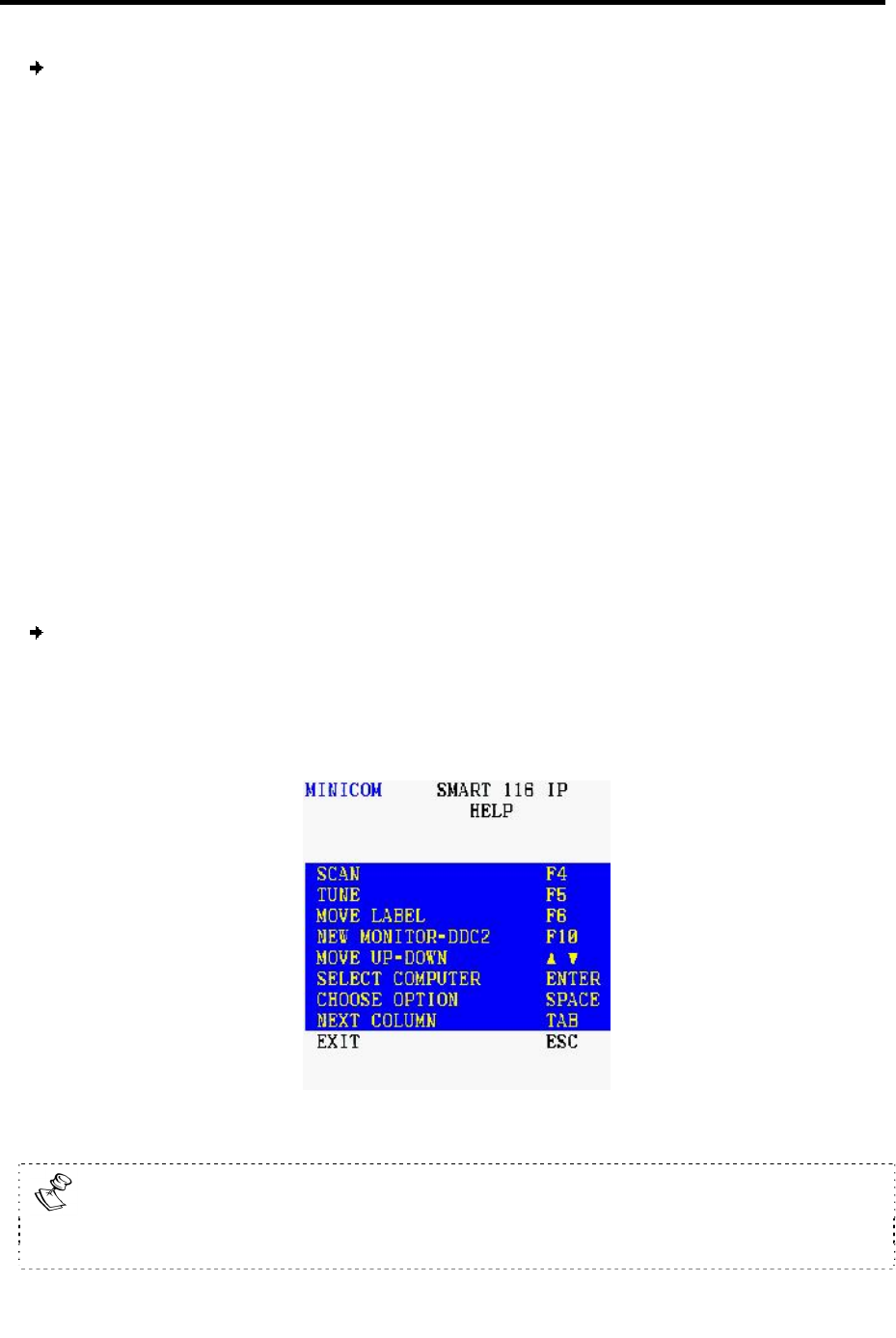

Figure 81 – The OSD HELP Window
All the functions listed in the Help window can be performed from the Main
window. The Help window is merely a reminder of the hotkeys and their
functions.
