Conducting a Remote Session
Adjusting the Video
58 | SmartRack 116 IP

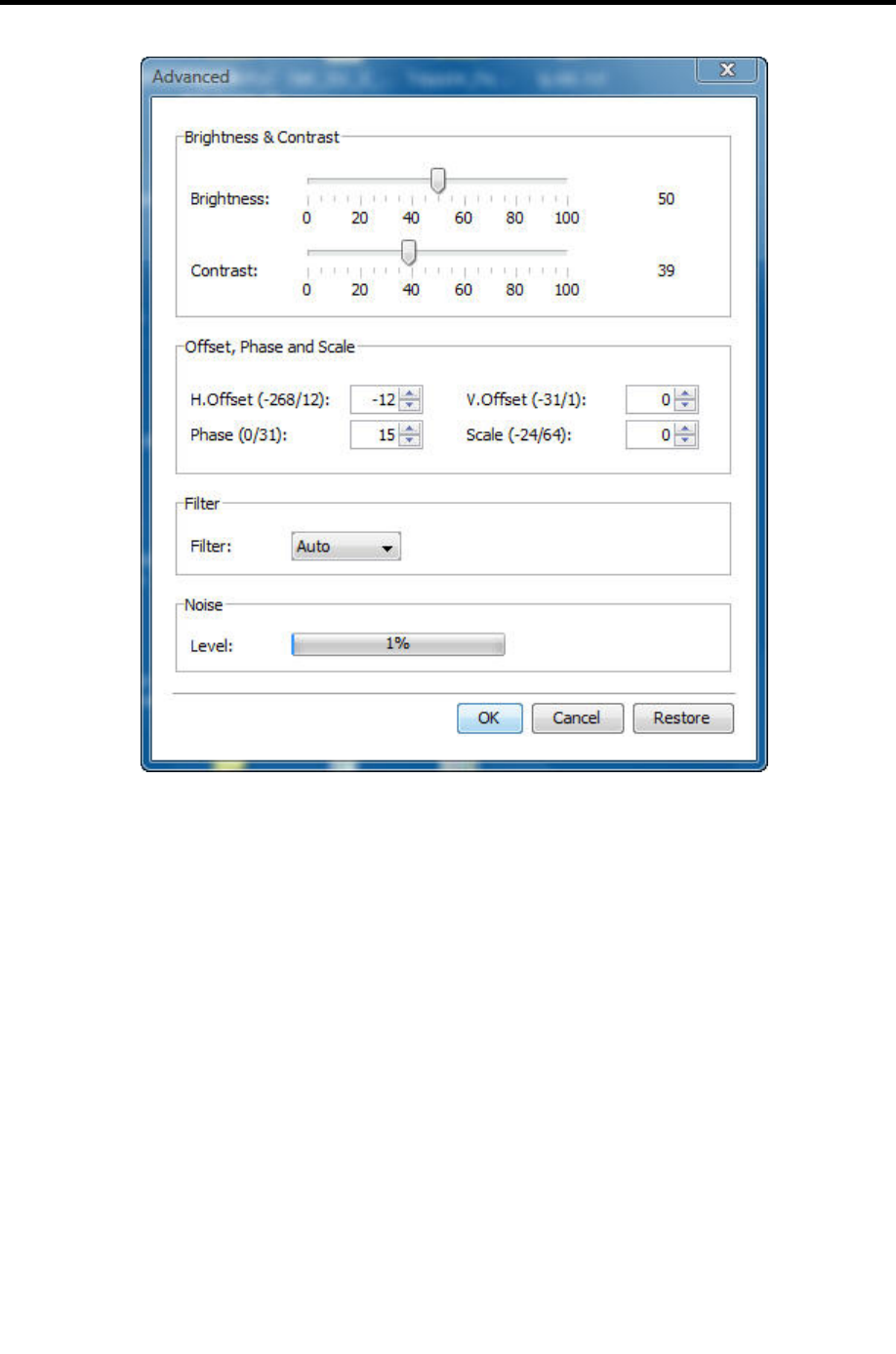

Figure 59 – Manual Video Adjustments Controls
2. In Brightness and Contrast, use the scales to adjust the brightness and contrast of
the displayed image, respectively. Move the sliders to change the displayed image.
Click in the area of the sliders for fine-tuning.
3. In the Offset, Phase and Scale section:
In H. Offset, select the starting position of each line on the displayed image.
In V. Offset, select the vertical starting position of the displayed image.
In Phase, select the point at which each pixel is sampled.
In Scale, select the scale resolution of the session image.
Adjust Phase and Scale to reduce the noise level to a minimum
.
4. In Filter, select the filter of the input video from the server. A higher filter reduces
the noise level but makes the image heavier. Options are
: Auto, No Filter, Low,
Medium,
and High.
