Conducting a Remote Session
Adjusting the Video
56 | SmartRack 116 IP

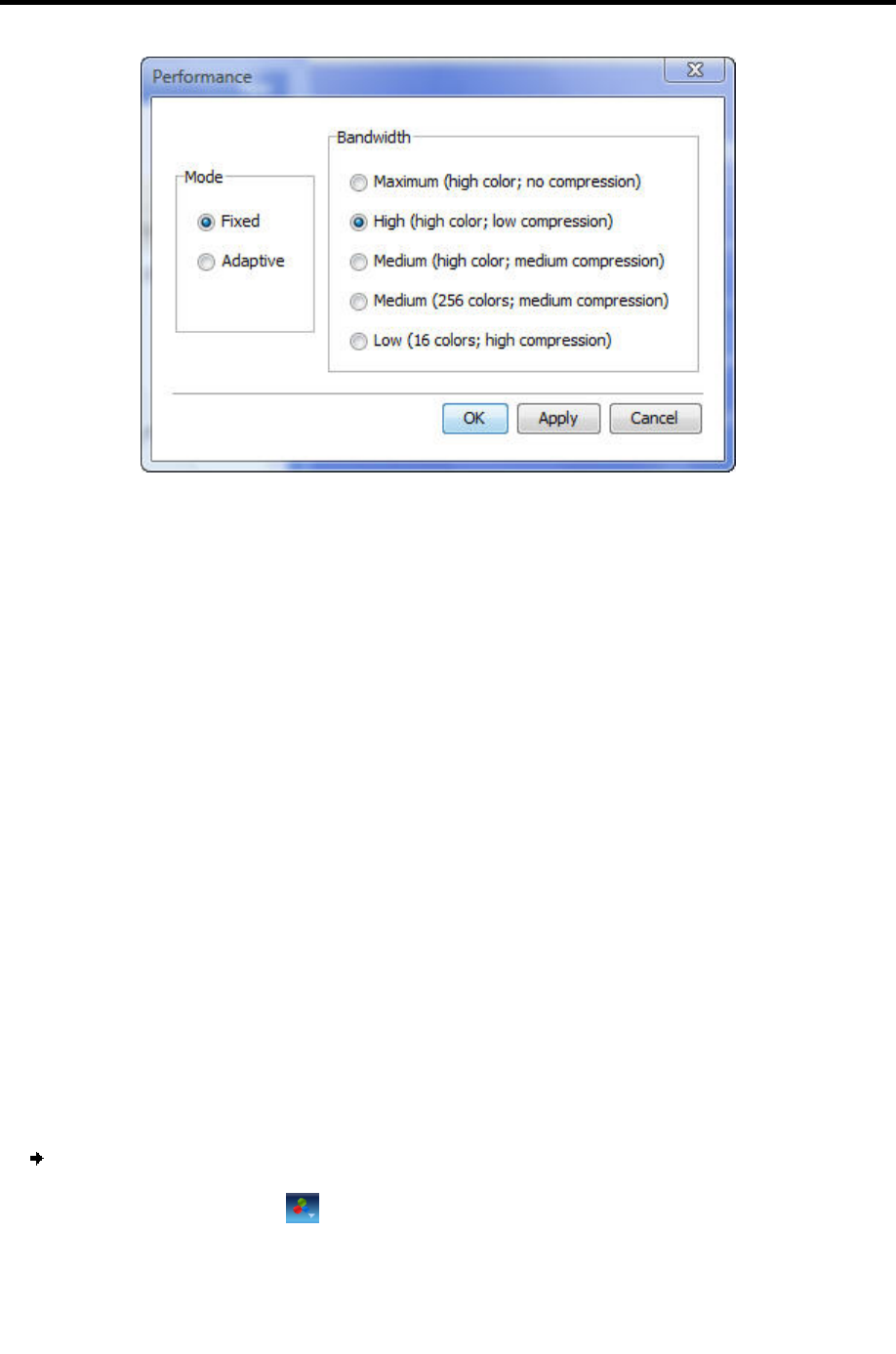

Figure 57 – Performance Settings
2. In Mode, select Fixed or Adaptive.
3. For Fixed mode, in Bandwidth, select Maximum, High, Medium (high color or 256
colors), or Low.
4. Click OK.
The chosen setting takes effect and the screen of the last accessed target server
appears.
4.7 Adjusting the Video
There are three ways to adjust the video image:
Refreshing the video image
Automatically adjusting the video image
Manually changing advanced video settings
4.7.1 Refreshing the Video Image
The video image may require refreshing when changing the display attributes of a
target server. Refreshing completely regenerates the video image.
To refresh the video image:
1. On the toolbar, select
> Refresh.
The image is refreshed.
