Conducting a Remote Session
Starting a Remote Session
50 | SmartRack 116 IP

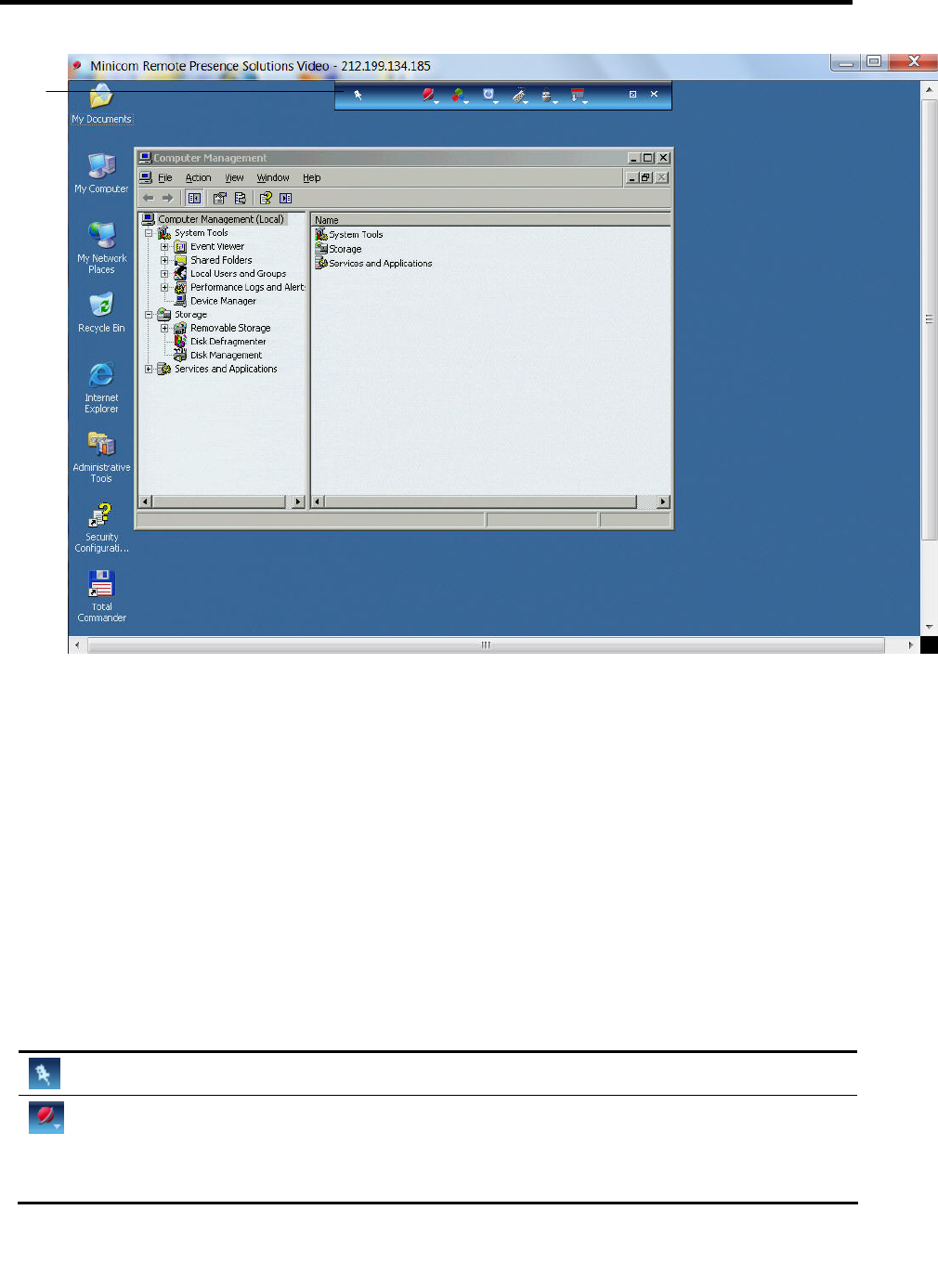

Figure 53 – Remote Session Page
The Remote Session page displays:
Server Confirmation label. – This confirms the identity of the current server
accessed, and disappears by default after 30 seconds (this period can be adjusted
in the OSD, as explained in Section 6.2.6). It appears again when switching to a
different server. The currently accessed server identity
can be checked any time
by looking at the Server name on the remote client menu.
4.1.1 Remote Session Toolbar Buttons
The following table describes the functionality of the Remote Session toolbar buttons.
Button Description
Toggle button for displaying/hiding toolbar.
Session button. Pressing this button opens up a dropdown menu for selecting:
Session Profile – enables configuring remote session profile session
About – displays client, firmware, Switch File, and KME version information
Toolbar
