3.9 Reloading a Page
You can load the parameters on any configuration page with the settings from the
SmartRack 116 IP device. This is convenient if you have already changed settings on
the page, and want to restore the device settings.
To reload a page:
1. In the Configuration page toolbar, click the
button.
The parameters are populated with the device settings.
3.10 Saving Changes and Logging Out
Once you have completed configuration changes, you must save them.
Changes to the SSL Certificate and Security pages require saving and restarting.
Saving the configuration changes after changing the Device page restarts the unit
automatically.
To save changes:
1. In the Configuration page toolbar, click the
button.
If you made changes to the Device page, the system automatically prompts you
to reboot and restart the device, by displaying the following device reboot
confirmation box:

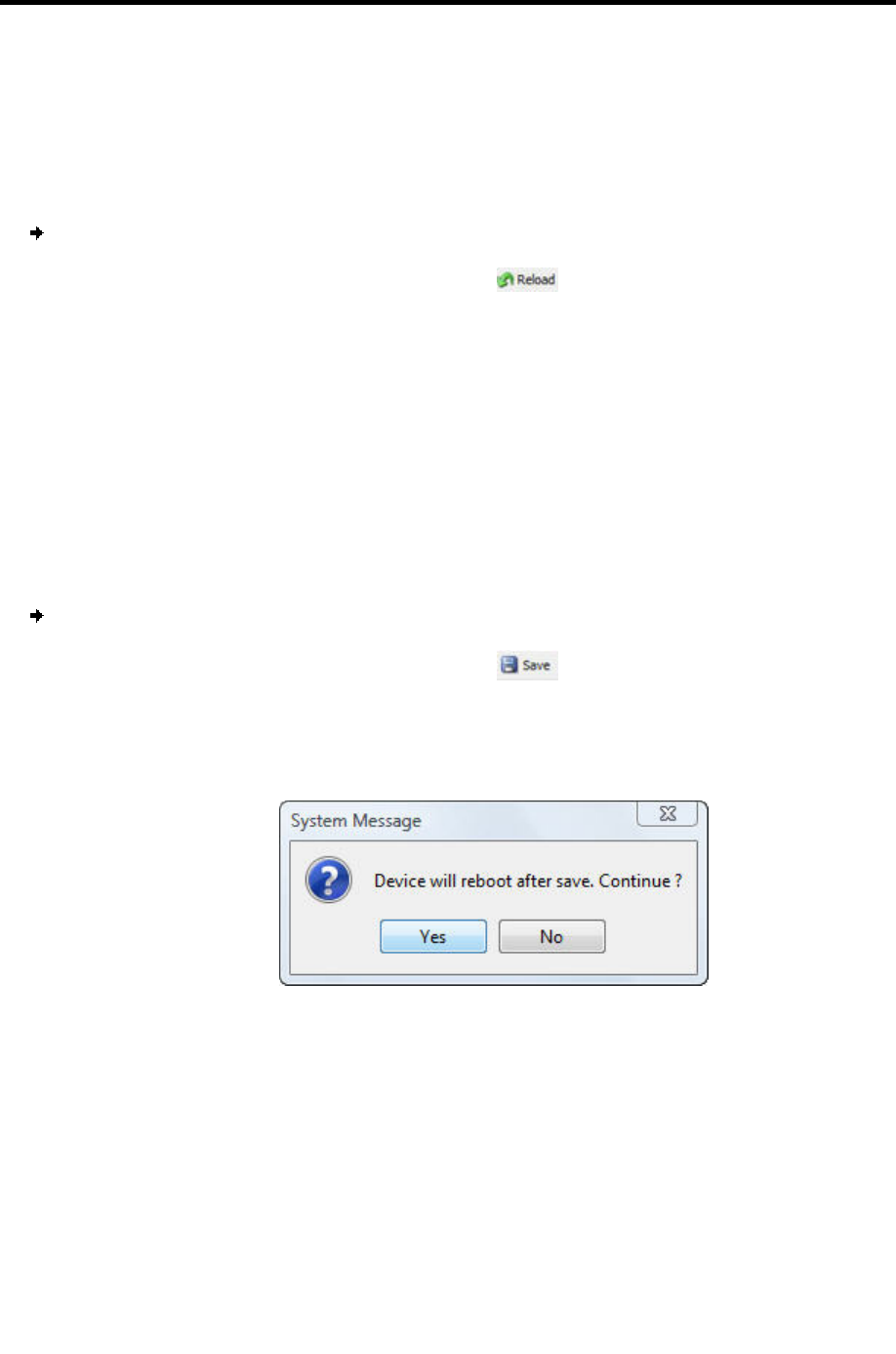

Figure 48 – Device Reboot Confirmation Message
1. Click Yes.
A message box informs that Save has completed.
