Configuring the Network
Performing Additional Configuration Operations
44 | SmartRack 116 IP
6. Save the changes and restart the system, by clicking the button, and then
the
button.
3.8.2 Upgrading Firmware
You can upgrade the SmartRack 116 IP firmware to take advantage of new features.
To upgrade firmware:
1. Download the firmware from Minicom’s website at:
http://www.minicom.com/phandlh.htm.
2. Save the firmware file on the client computer.
3. In the toolbar, select
.
The Device Version Upgrade page appears, displaying the current firmware
version on the device.

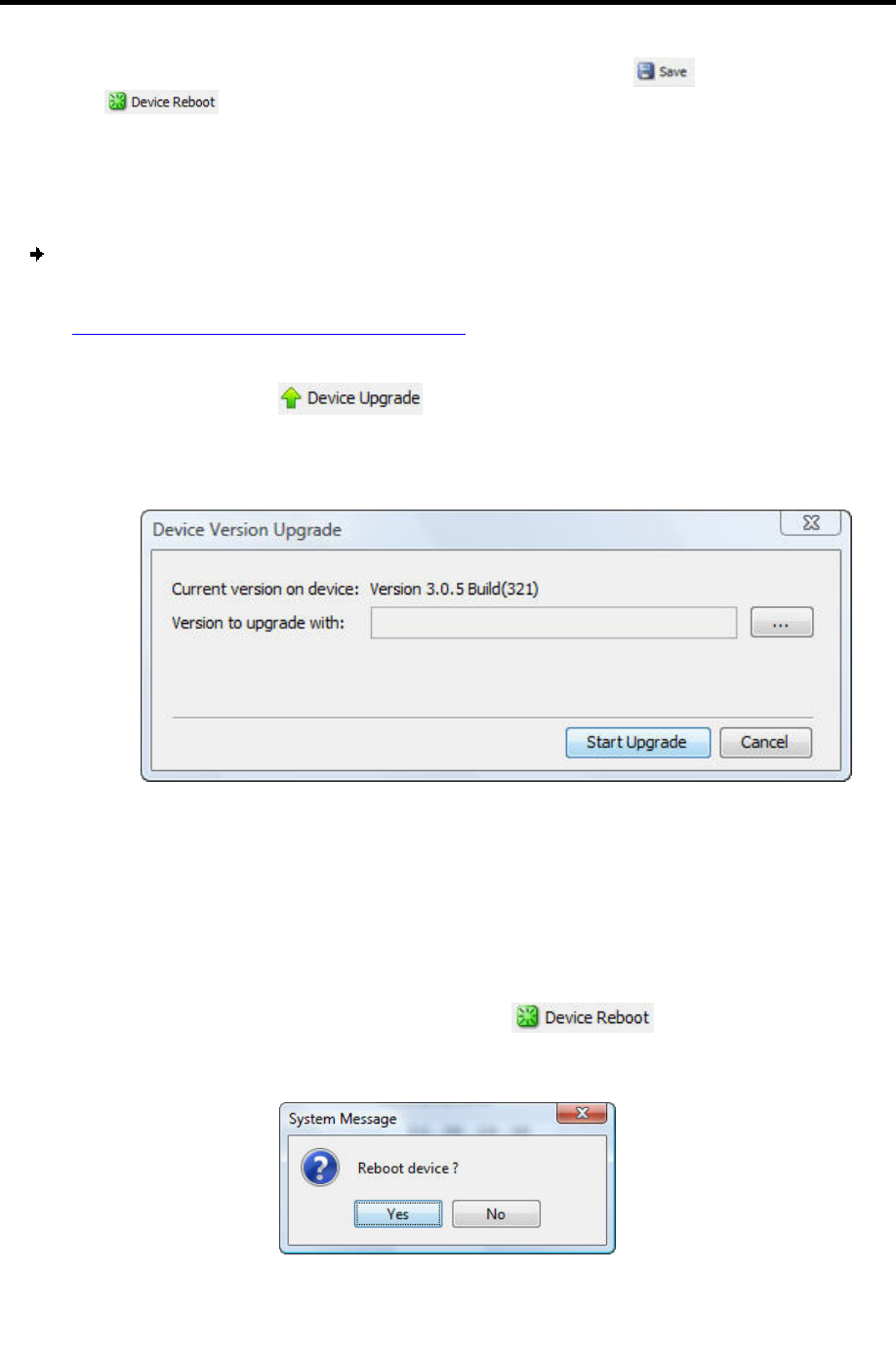

Figure 45 – Device Version Upgrade Page
4. In Version to upgrade with, browse to locate and upload the firmware file.
5. Verify the current and uploaded version of the firmware.
6. Click Start Upgrade.
The upgrade starts.
7. On upgrade completion, on the toolbar, click
.
A confirmation box appears.
Figure 46 – Reboot Confirmation Page
