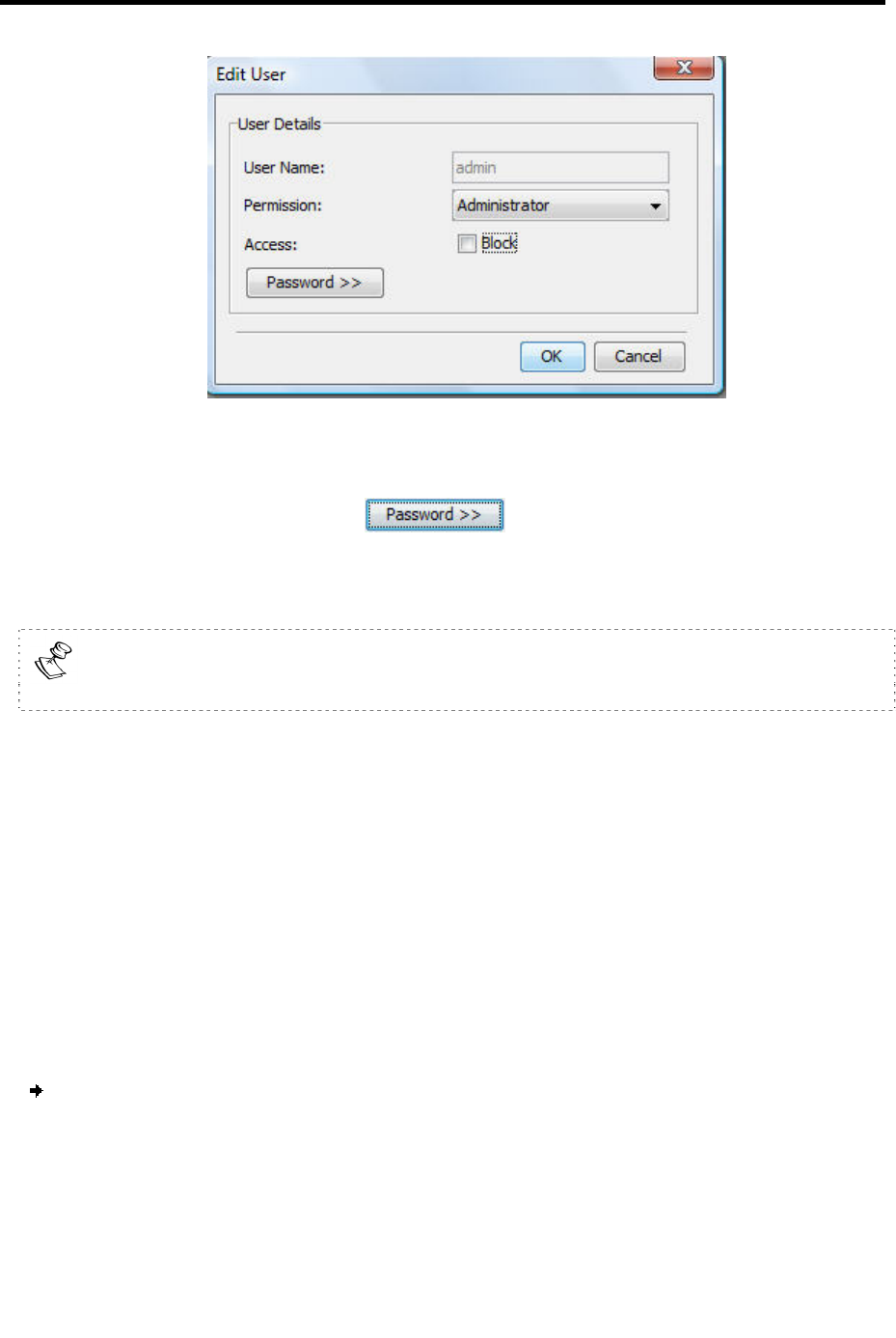

Figure 41 – Edit User Page
2. Change the Permission and/or Access as required.
3. To change the password, click
.
The Password parameter opens. In the upper textbox, type the new password; in
the lower textbox, confirm the new password.
You cannot change the password of an Administrator who is currently logged on
to the system.
4. Click OK.
The User page opens with the user information changed accordingly.
3.6 Configuring the KVM Switch
When a KVM switch is connected to the SmartRack 116 IP system, configure the
following switch parameters:
The names of the servers connected to the KVM switch – It is recommended to
give the servers connected to SmartRack 116 IP unique names, so that users
accessing the system can easily identify the servers.
To configure a KVM switch:
1. From the configuration menu, select Switch Configuration.
The KVM Switch Configuration page appears.
