Configuring the Network
Logging Onto the Web Configuration Interface
User Guide | 33
4. In User, type the default Administrator name admin and in Password, type access
(both lower case).
5. In Mode, select Configuration.
6. Click Enter.
The Network configuration page appears with the Device tab open.

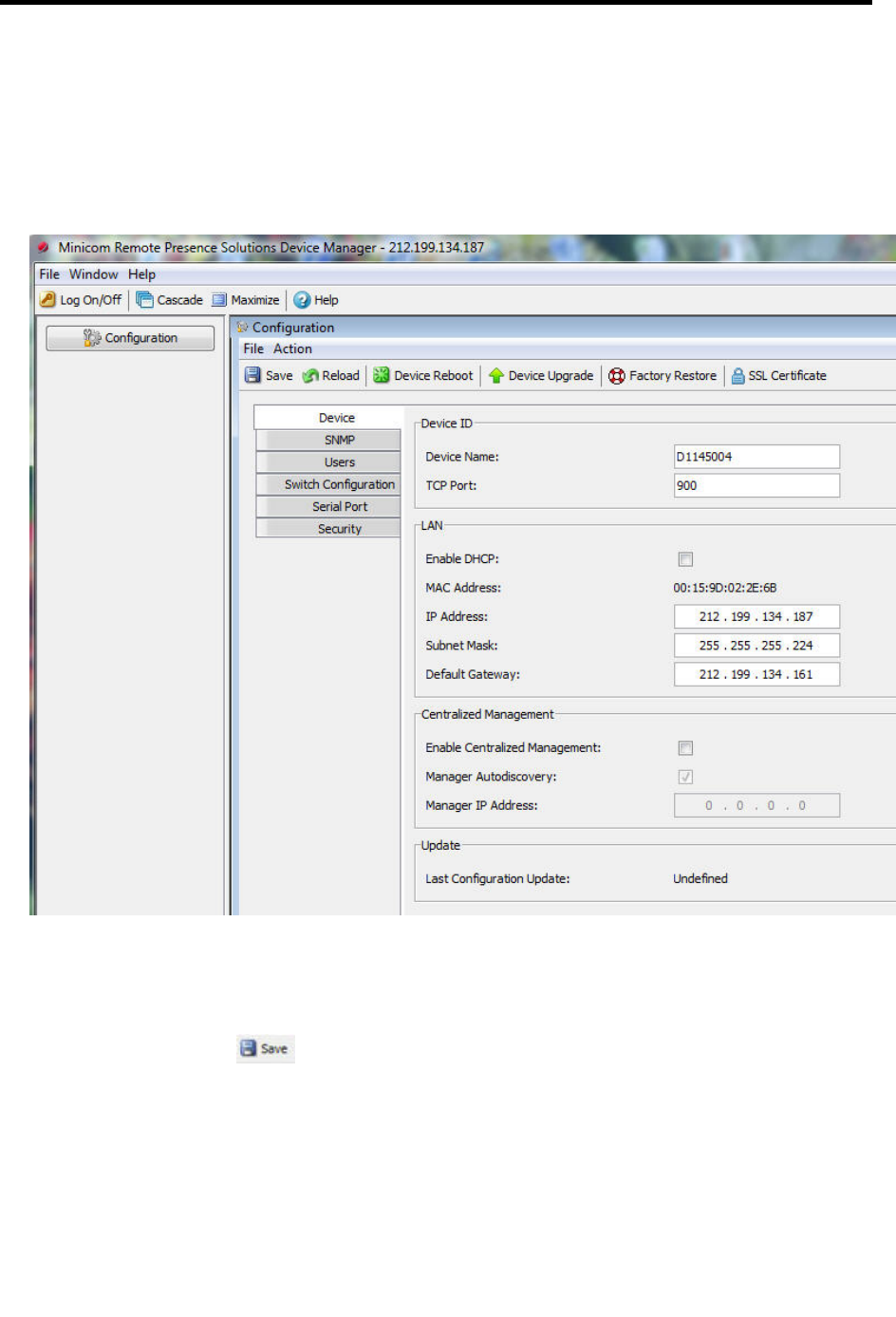

Figure 36 – Network Configuration – Device Tab
From the Configuration menu, you can configure the network, SNMP, Users,
Switch Configuration, and Security settings. After making all configuration changes,
you must click the
button in the toolbar for the changes to go into effect.
3.2.1 Web Configuration Interface Tabs
The following table summarizes the Web configuration interface tabs.
