Configuring the Network
Boot-Up Process
User Guide | 31

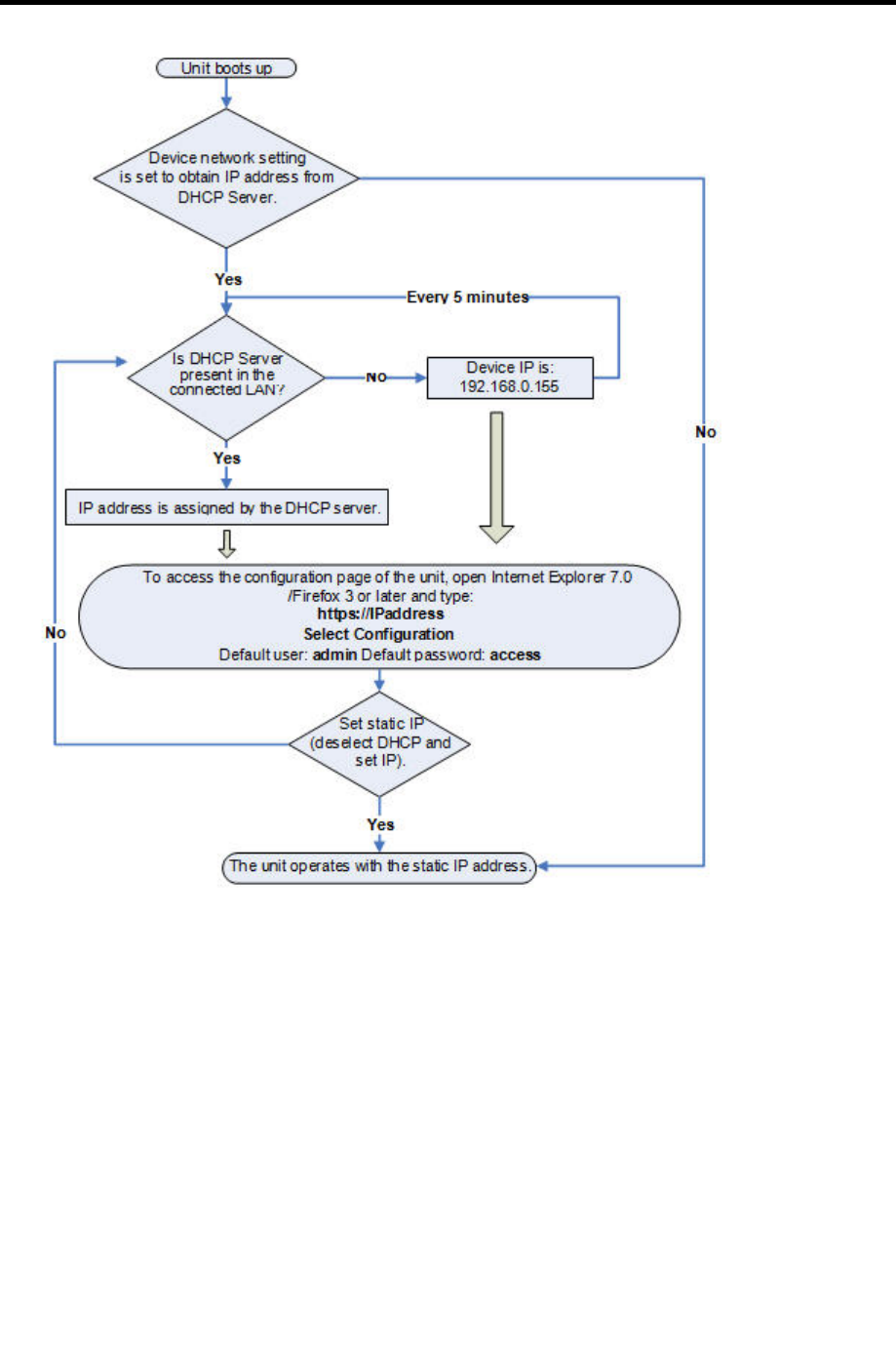

Figure 33 – Boot-Up Process
Assigning Static IP Addresses for a Number of Units
You can connect more than one SmartRack 116 IP to the same network. If there is no
DHCP server, or you want to use static IP addresses, connect the SmartRack 116 IP
units one at a time and change the static IP address of each unit before connecting
the next unit.
