Installation
Connecting to the Servers
User Guide | 27

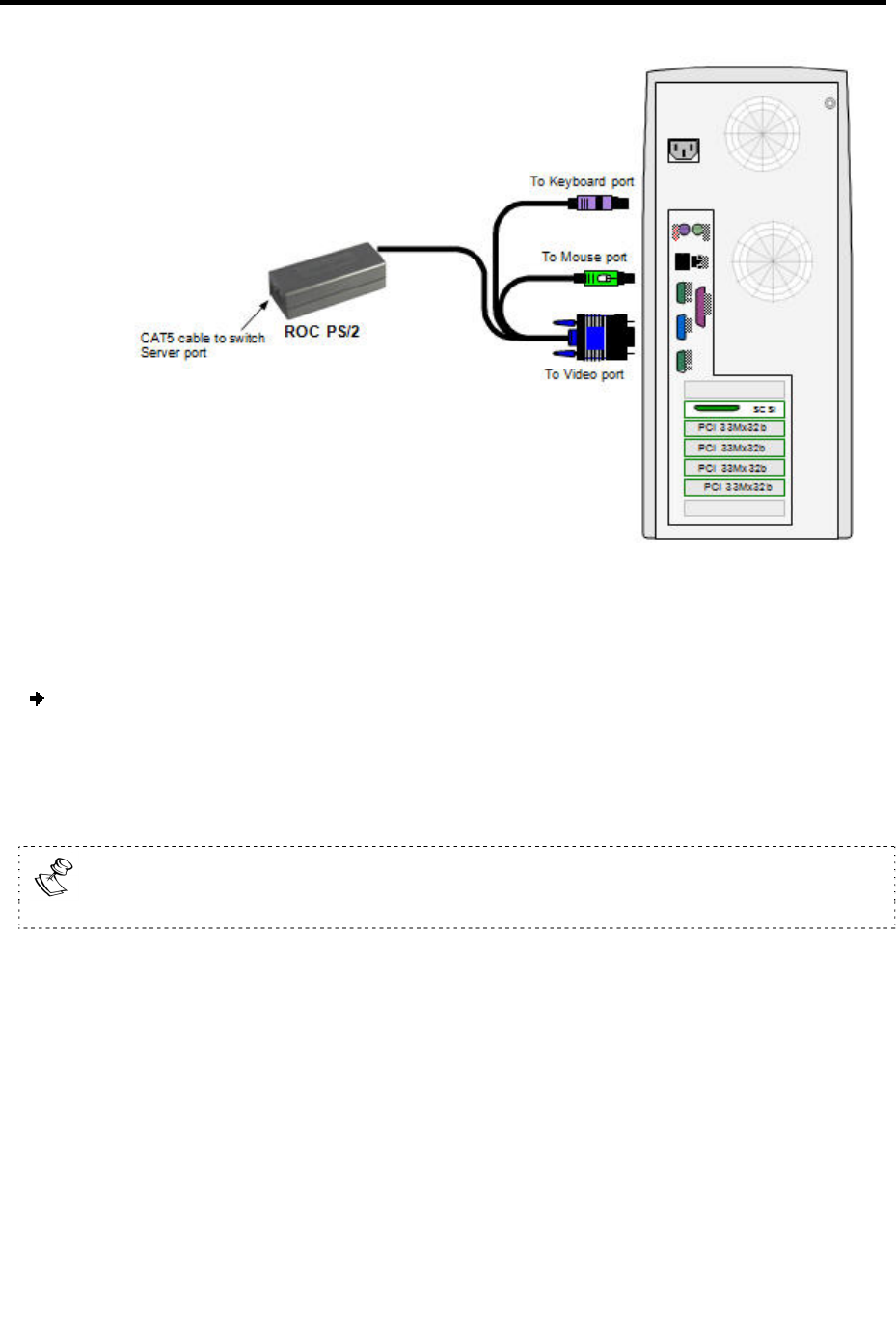

Figure 30 – ROC PS/2 Connections
You can connect the RICC/ROC PS/2 to a powered on computer, by performing the
steps of the following procedure in order.
To connect the RICC/ROC PS/2 to a powered on computer:
1. Connect the Mouse connector to the computer’s Mouse port.
2. Connect the Keyboard connector to the computer’s Keyboard port.
3. Connect the Screen connector to the computer’s Video card.
Failure to connect in the above order while the server is running may lead to
the mouse malfunctioning until the server is rebooted.
2.6.2 Connecting a RICC/ROC USB
The RICC/ROC USB supports Windows 98 SE and later, MAC, SUN, and SGI, and all
modern Linux distributions. The connections for the RICC USB are exactly the same
as for the ROC USB.
The following figure illustrates the ROC USB and its connections.
