Installation
Connecting the System
User Guide | 25

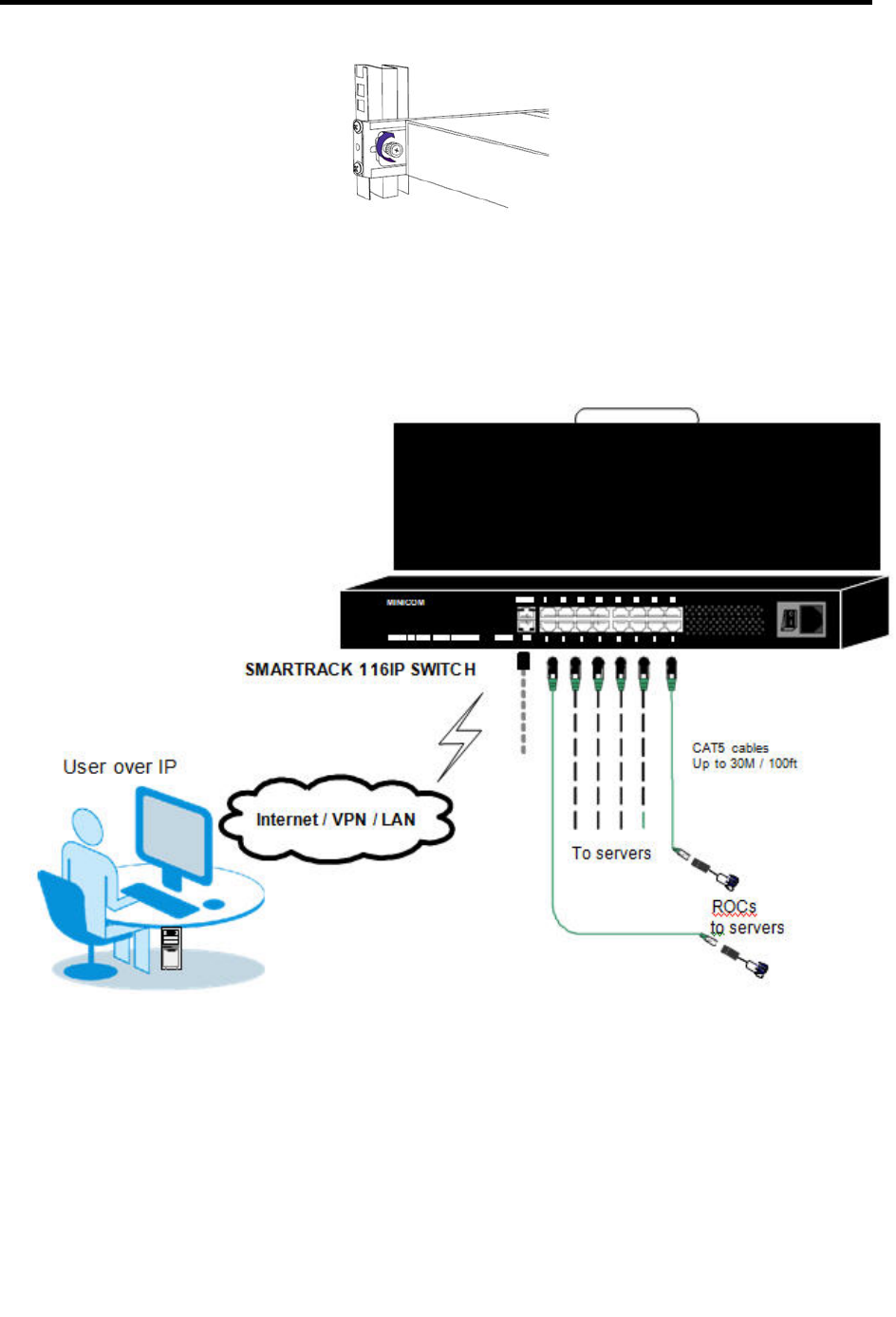

Figure 26 – Tightening the Thumbscrews
2.5 Connecting the System
Figure 27 illustrates the SmartRack 116 IP system overview.
Figure 27 – SmartRack 116 IP System Overview
2.6 Connecting to the Servers
Each computer/server is directly connected to the SmartRack 116 IP via an
appropriate ROC or RICC using a CAT5 cable in star configuration. No external power
is needed at the remote RICC/ROCs. The RICC/ROCs draw their power from the
computer’s keyboard port (RICC/ROC PS/2, SUN) or from the USB port (RICC/ROC
USB). Figure 28 and Figure 29 illustrate the ROC PS/2 and ROC USB.
