Installation
Rack Mounting SmartRack 116 IP
User Guide | 23

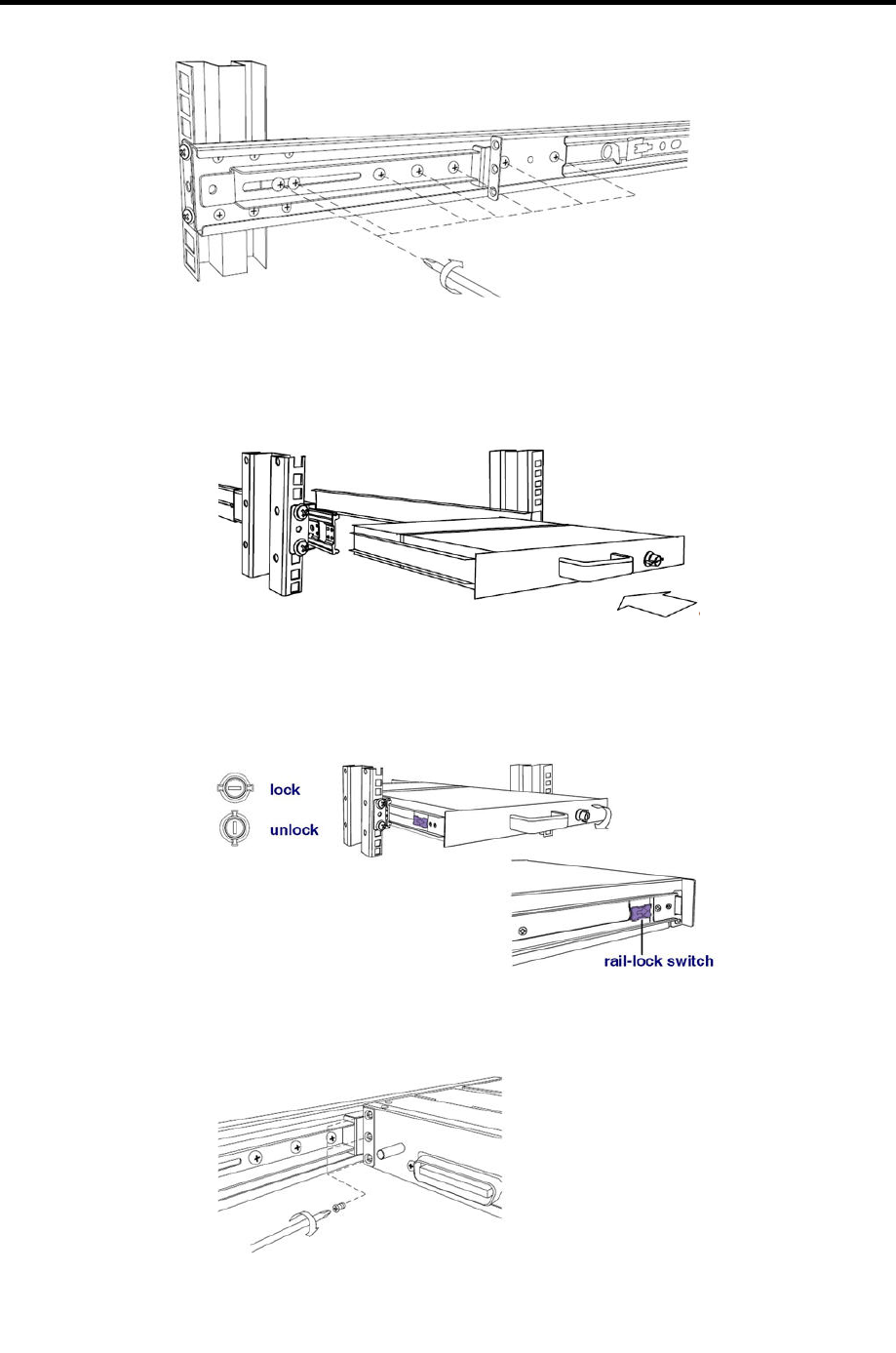

Figure 19 – Tightening the Seven Screws
6. Repeat steps 1 to 5 to connect the other rail to the other side of the rack.
7. Slide the SmartRack console between the rails.
Figure 20 – Sliding the SmartRack Console Between the Rails
8. Unlock and pull both left and right rail-lock switches together, and push the console
all the way into the rack.
Figure 21 – Rail-lock Switch
9. Connect three flat screws to the rear of the console on both sides.
Figure 22 – Connecting Three Flat Screws to the Rear of the Console
