Installation
Rack Mounting SmartRack 116 IP
22 | SmartRack 116 IP

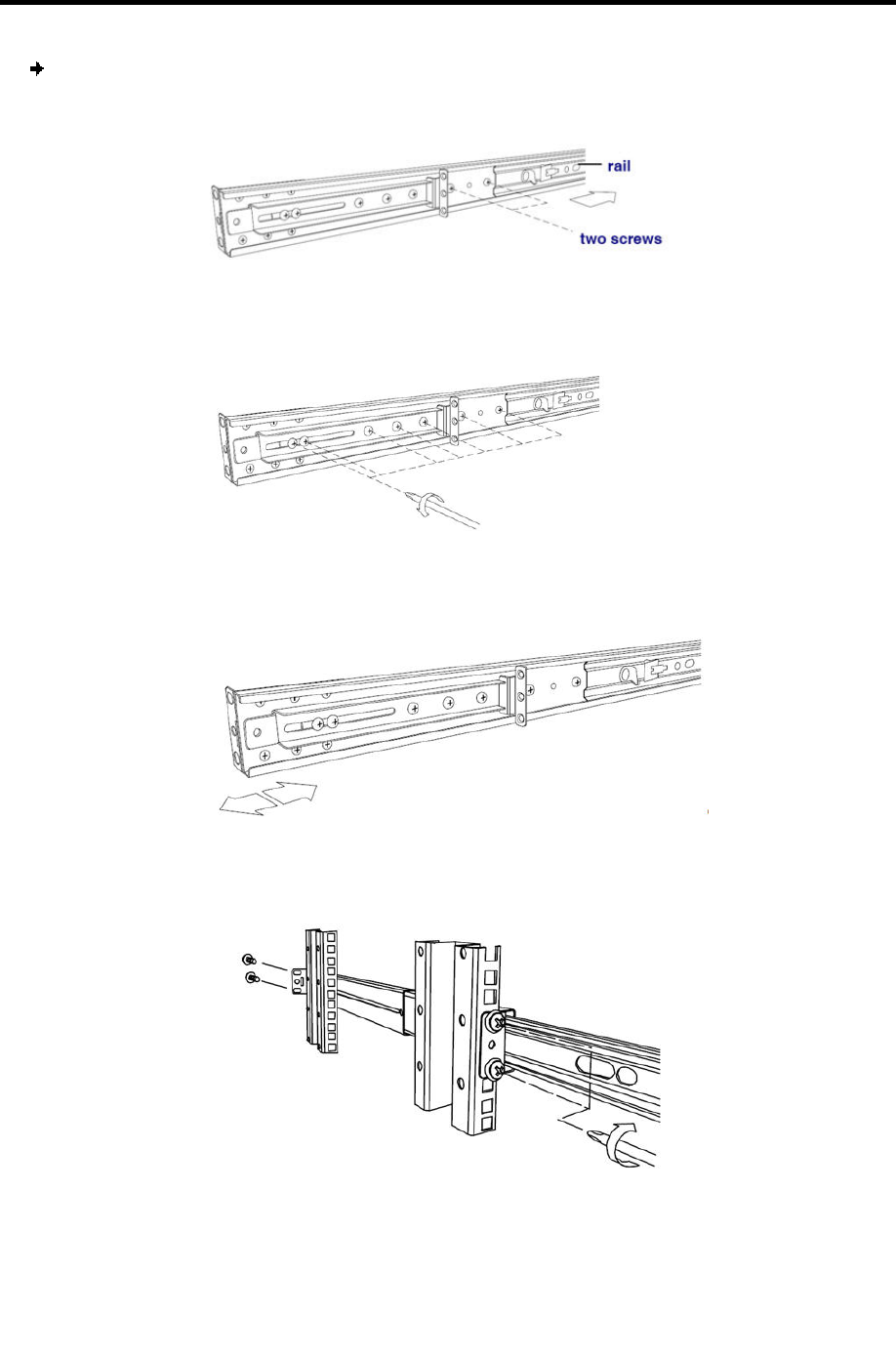

To connect to a rack:
1. Move the rail until two screws appear.
Figure 15 – Exposing Two Screw
2. Loosen slightly the seven screws.
Figure 16 – Loosening the Screws
3. Adjust the rear bracket to fit your cabinet.
Figure 17 – Adjusting the Rear Bracket
4. Install the front and rear bracket onto the cabinet.
Figure 18 – Installing Front and Rear bracket on Cabinet
5. Tighten the seven screws.
